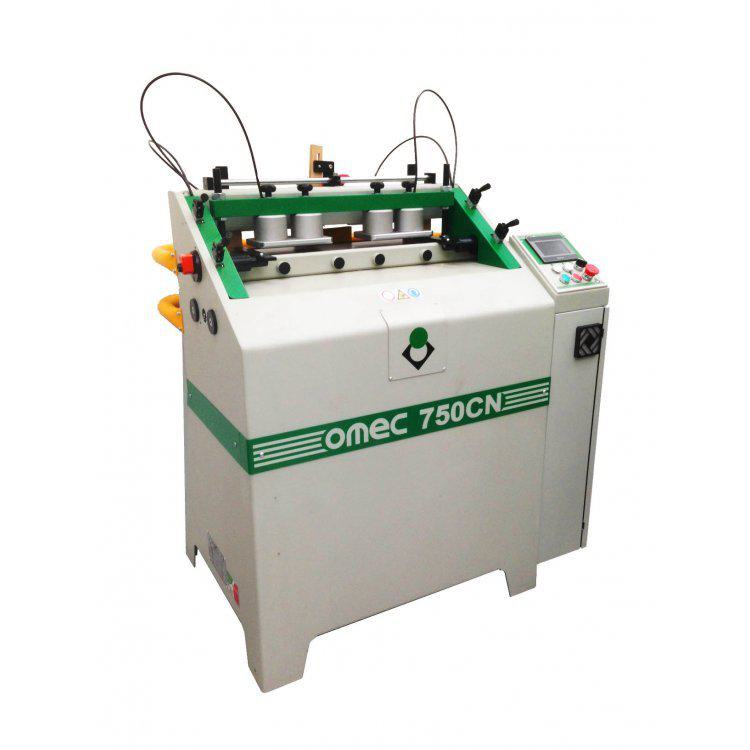

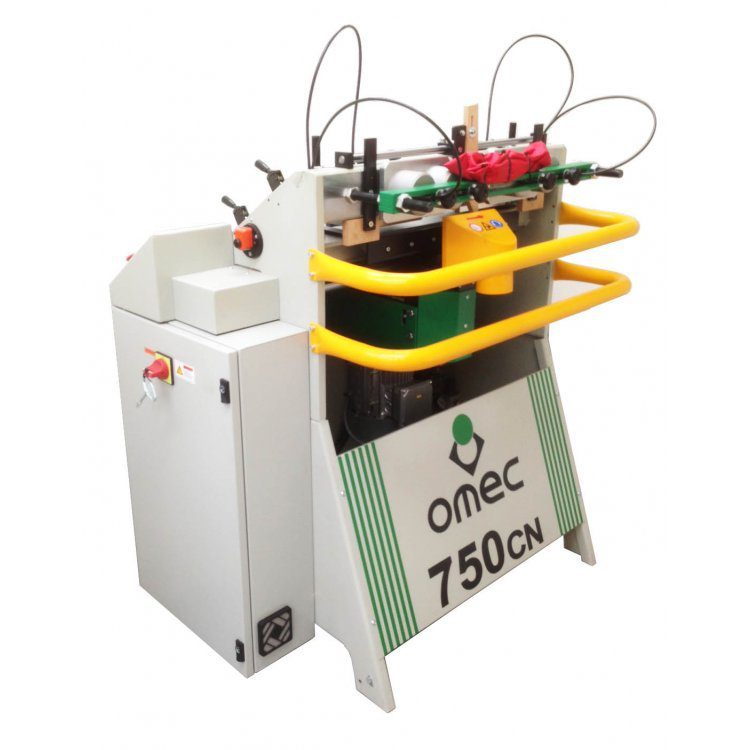

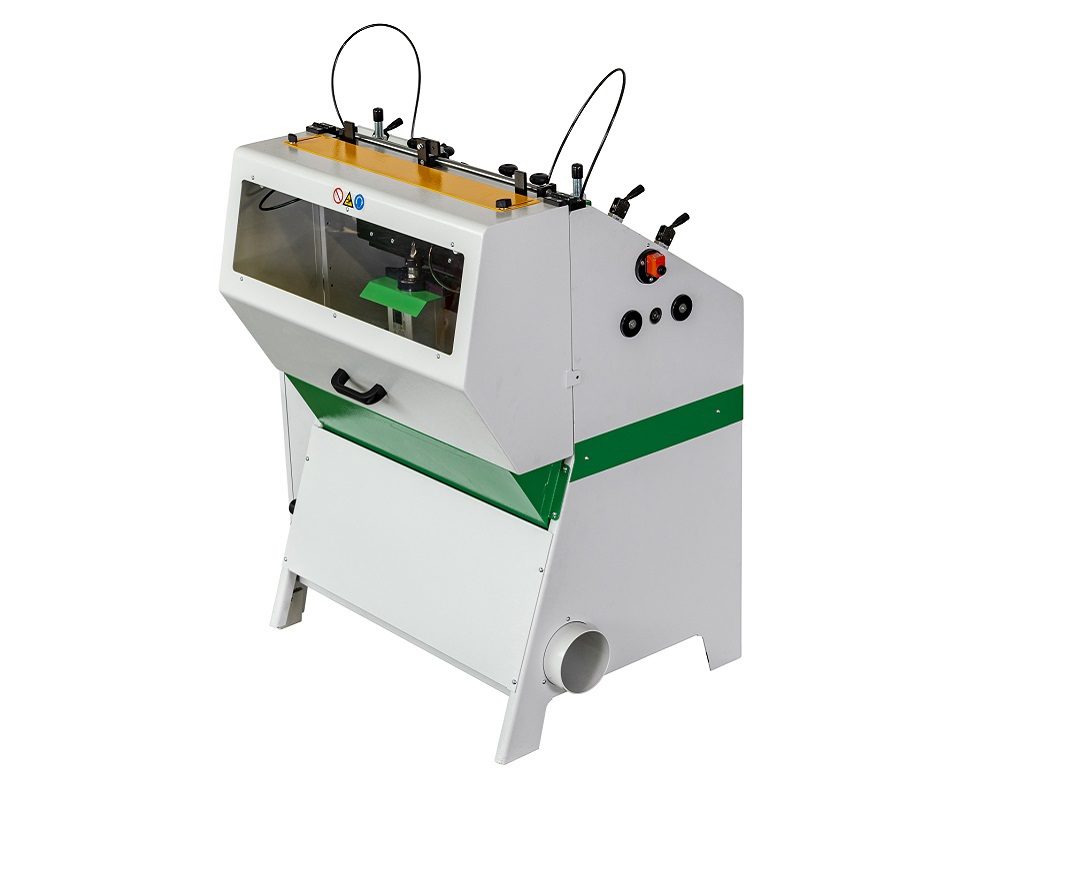

Omec 750 CN Dovetailer

New

Available from stock

£18,950.00

(£22,740.00 inc VAT)

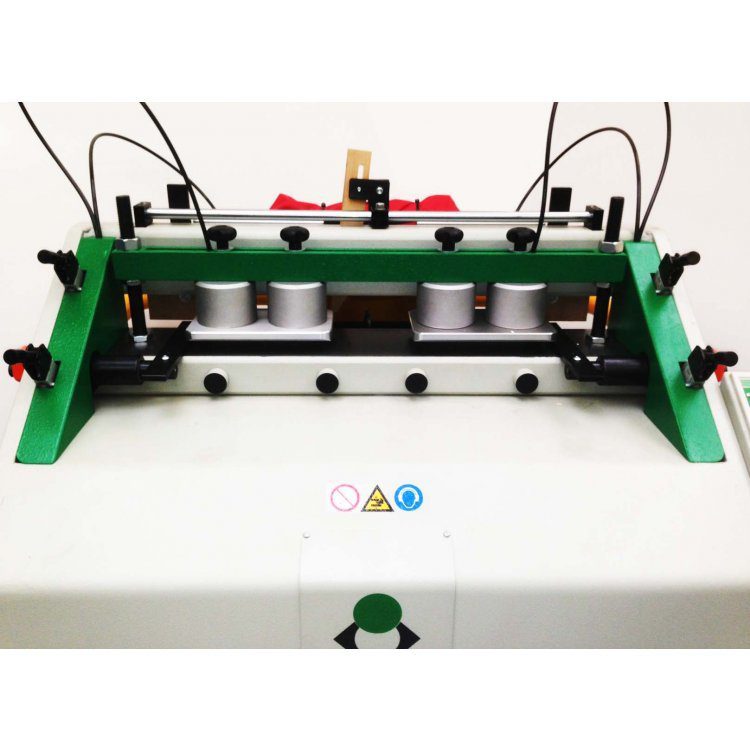

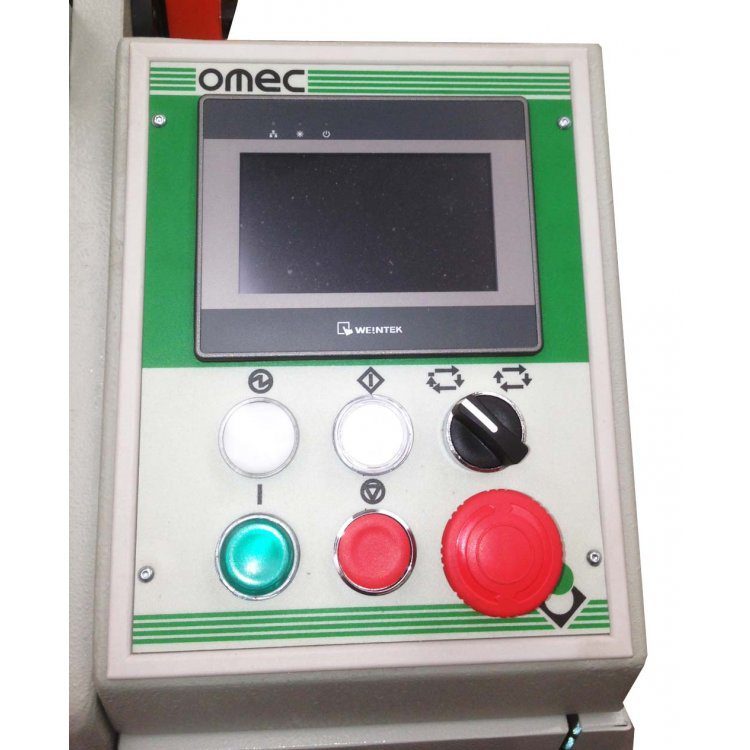

Omec 750CN production automatic dovetailer with touch screen control, designed to produce variable pitch dovetails or finger joints. The machine has auto pitch, manual pitch, through dovetail and french joint programs loaded as standard. Pneumatic cramping in both the vertical and horizontal positions hold the components security during maching. The touch screen control allows easy and fast settings of the joint, pitch, feed speed, tightness of joint, joint depth and pre scribing aswell as program memory

1 Only in Stock

  • Motor

    2.7 kW

  • Working Pressure

    0.7 mp

  • Number of Spindles

    1

  • Speed

    18000rpm

  • Centre to Centre Indents

    Variable or fixed

  • Machine Weight

    360kg

  • Drawer Production

    60/hr

  • Overall Dimension

    118 x 80 x 122cm

  • Minimum Dimension of work Piece

    200 x 60mm

  • Maximum Dimension of Work Piece

    1500 x 530mm

Download Brochure
