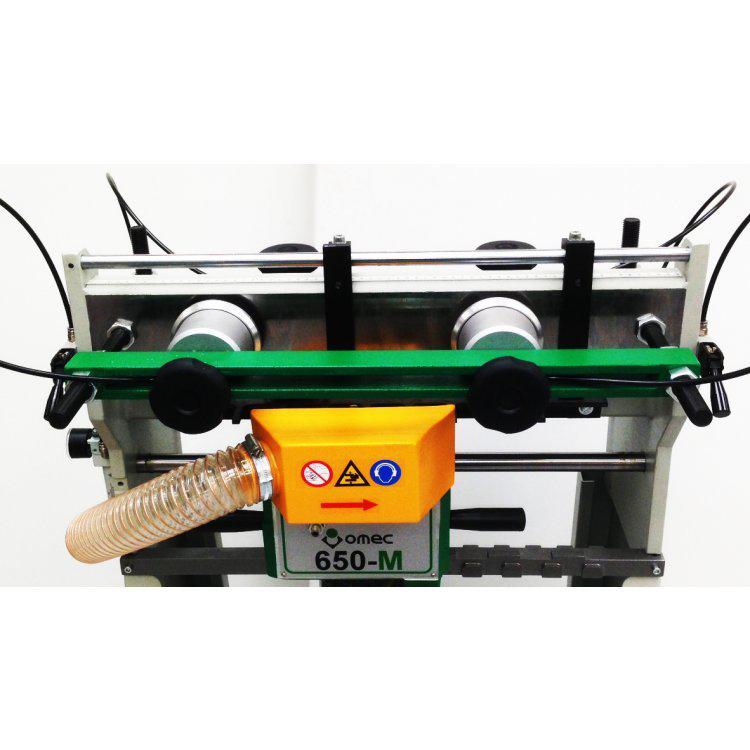

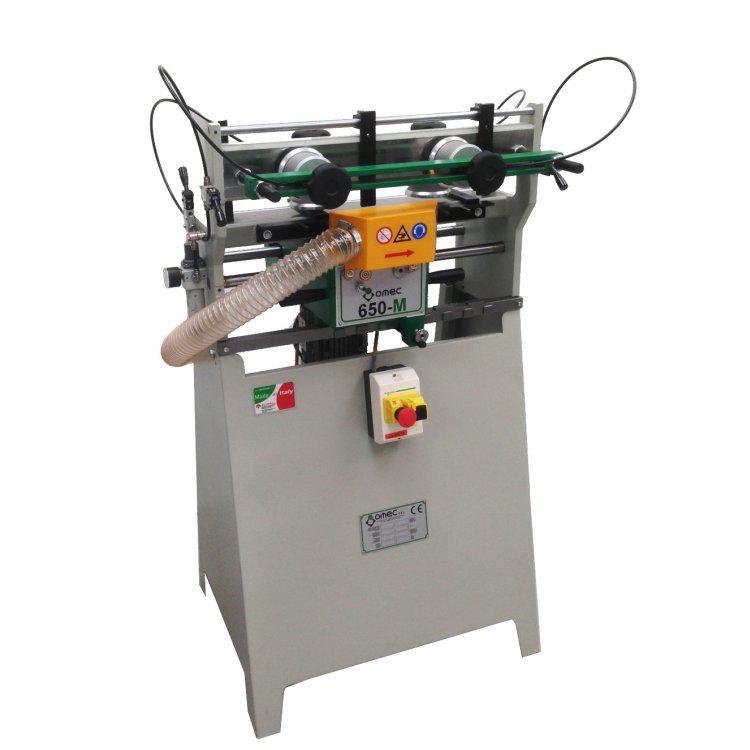

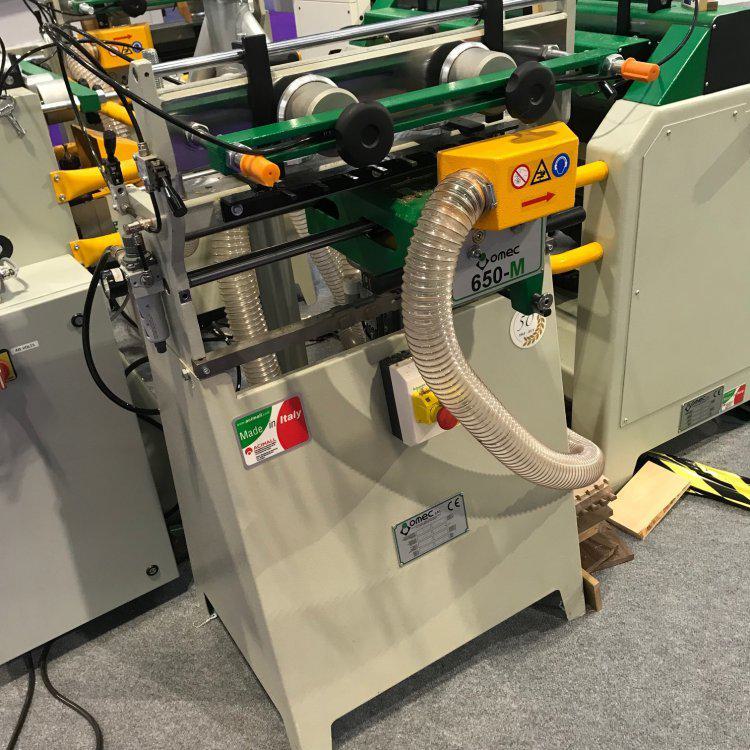

New Omec 650 M Dovetailer

New

Available to order

£4,200.00

(£5,040.00 inc VAT)

Omec 650M Manual Dovetailer for producing indents in 4 pitch sizes, Horizontal and Vertical pneumatic clamping to hold the pieces in place. 240v single phase electrics for easy installation

  • Motor power

    0.75kw 240v

  • Number of spindles

    1

  • Spindle speed

    16,500

  • Pitch dovetails

    25 - 40 - 50 -80mm

  • Machine weight

    150kg

  • Machine dimensions

    80 x 72 x 132cm

  • Max height of dovetail

    18mm

  • Min front and side thickness

    7mm

  • Max front thickness

    60mm

  • Max side thickness

    30mm

  • Max width of component

    420mm

Download Brochure
