Omec 650 A Dovetailer

New

Available from stock

£13,900.00

£13,250.00

(£15,900.00 inc VAT)

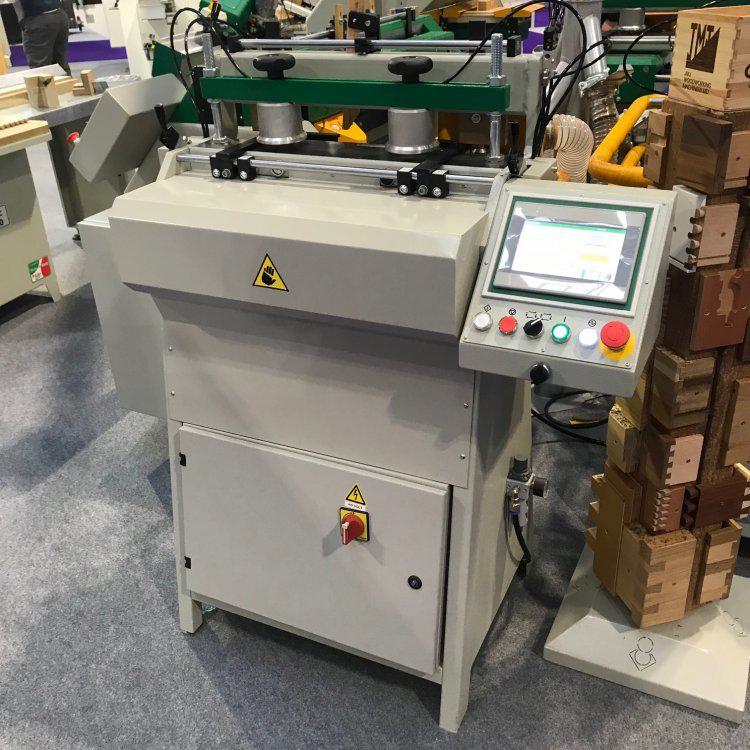

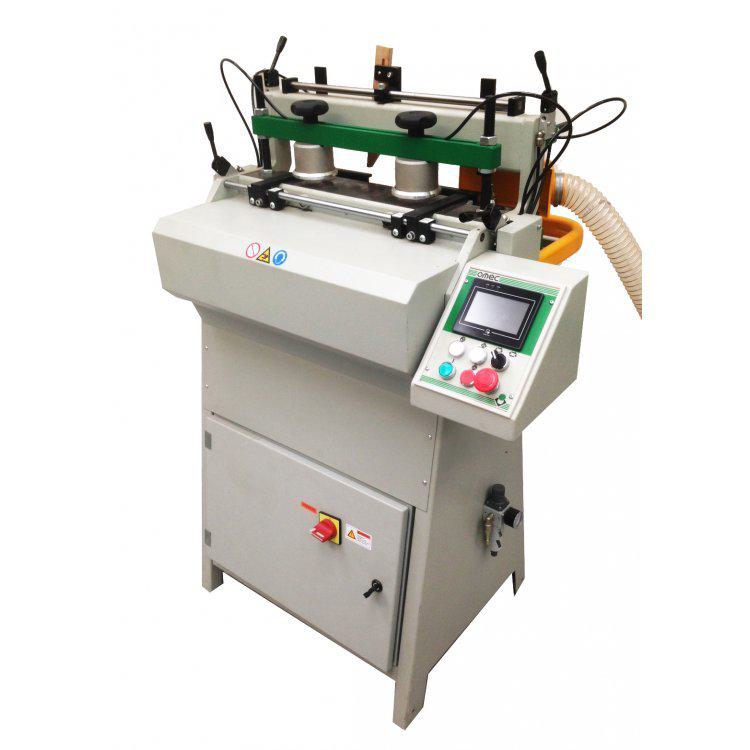

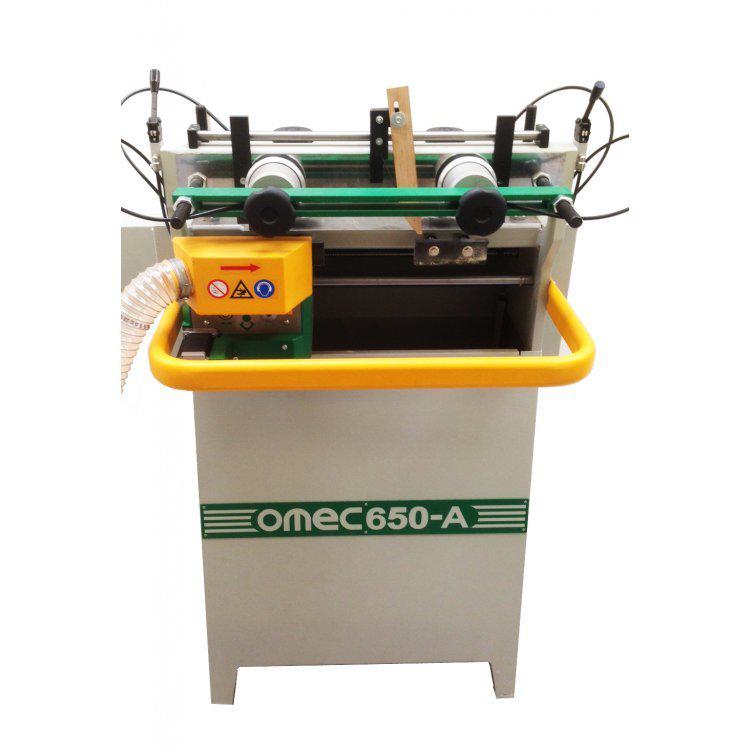

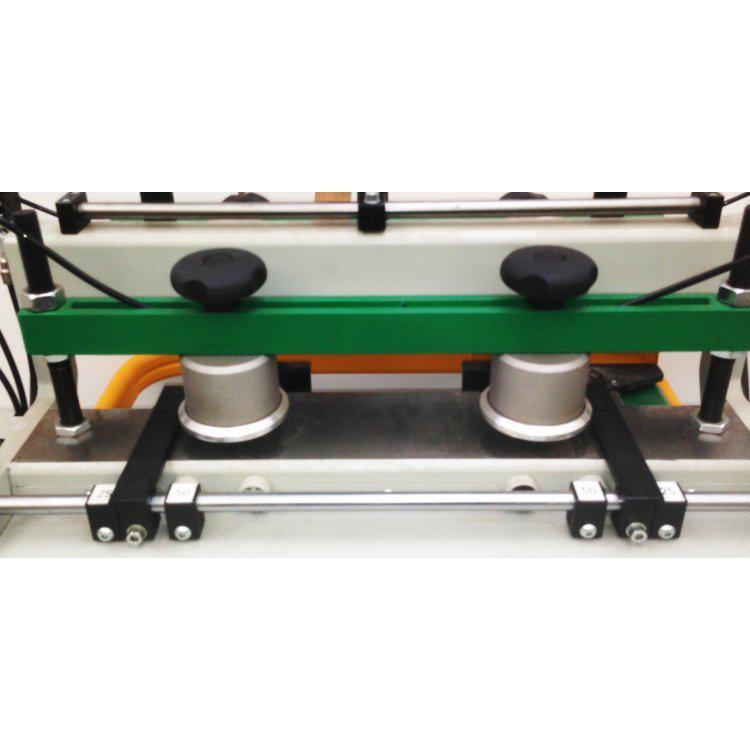

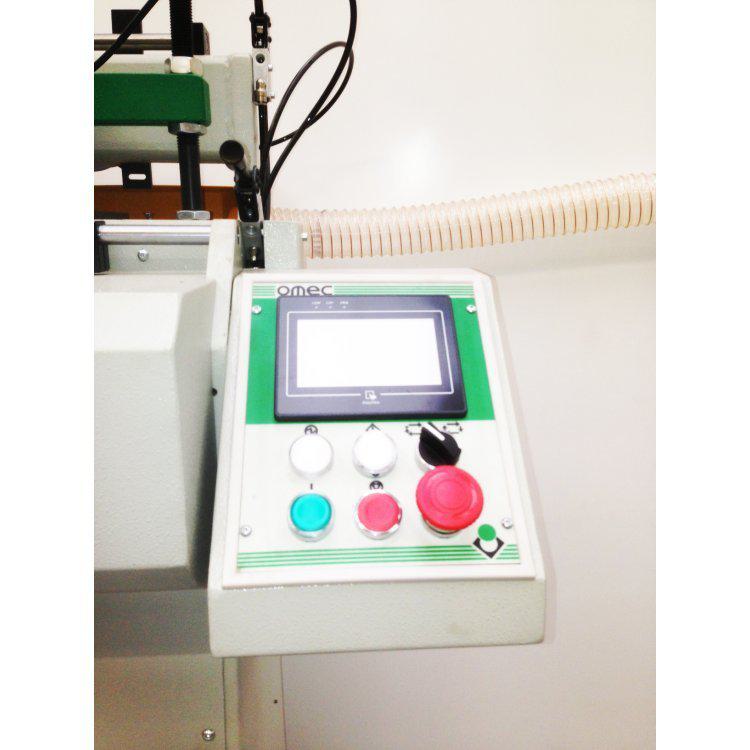

Omec 650A Automatic dovetailer with touch screen control. The machine is designed to produce dovetails and finger joints at 25mm and 50mm pitch. Pneumatic clamps hold the pieces both horizontally and vertically in place. The touch screen control, sets the feed speed joint tightness, joint start position and numbers of joints. A pre scribing function is also built into the program to ensure a clean cut

  • Machine Power

    2.5kw

  • Pitch of Dovetails

    25 and 50mm

  • Working Air Pressure

    0.7m pascal

  • Number of Spindles

    1

  • Spindle Speed

    15,500rpm

  • Machine Weight

    160kg

  • Machine Dimensions

    80 x 72 x 132cm

  • Max. Height of Dovetails

    16mm

  • Min Front and Side Thickness

    8mm

  • Max Front Thickness

    60mm

  • Max Side thickness

    20mm

  • Max Width of Component

    400mm

  • Max production quantity

    40 drawers per hour

Download Brochure
Close Button

Enquire about Omec 650 A Dovetailer
