New Omec SCM 1200 Cramp,

New

Available from stock

showroom model

£12,100.00

£10,500.00

(£12,600.00 inc VAT)

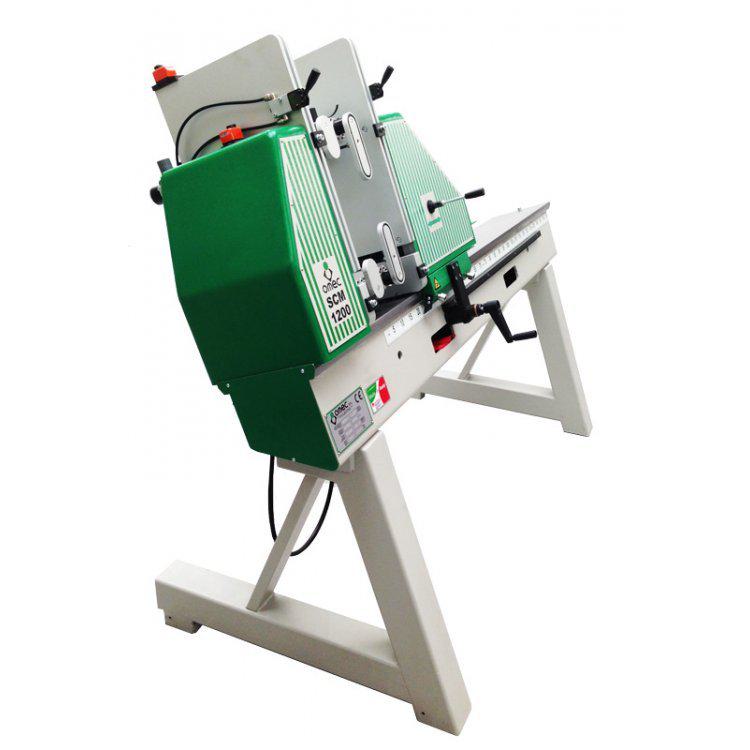

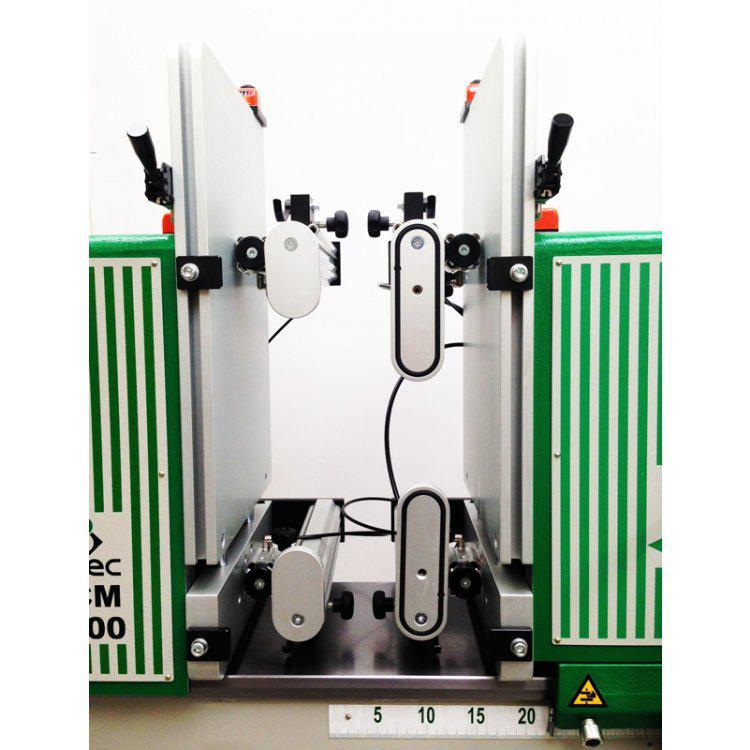

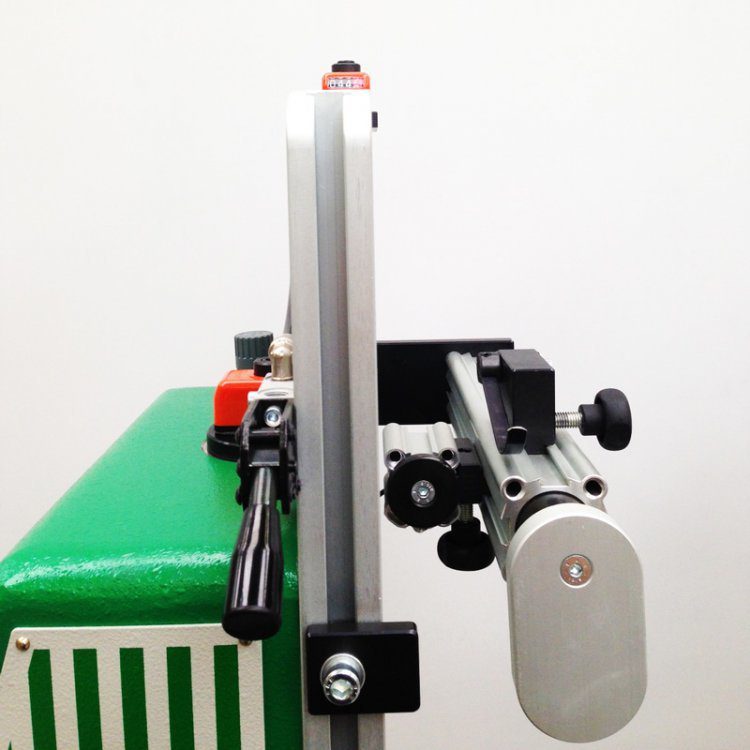

The OMEC SCM1200 Manual Press has been designed to assemble drawers with five separate elements, with dovetail joints or pegs. The size of the drawer is adjusted by the operator, by hand. The machine has a hydraulic power plant which drives a cylinder to press and square up the parts of the drawer previously inserted in the relevant supports. This machine is fitted with a vacuum system allowing to keep the drawer’s bottom in position.

  • Power Installed on the Machine

    0.37 Kw

  • Working Pressure

    0,7 Mpascal

  • Drawer production

    N° 60

  • Mass of the machine

    300 kg

  • Overall dimensions (L x W x H)

    80 x 190 x 150cm

  • Dimensions of the Packaging

    93 x 204 x 170cm

Download Brochure
