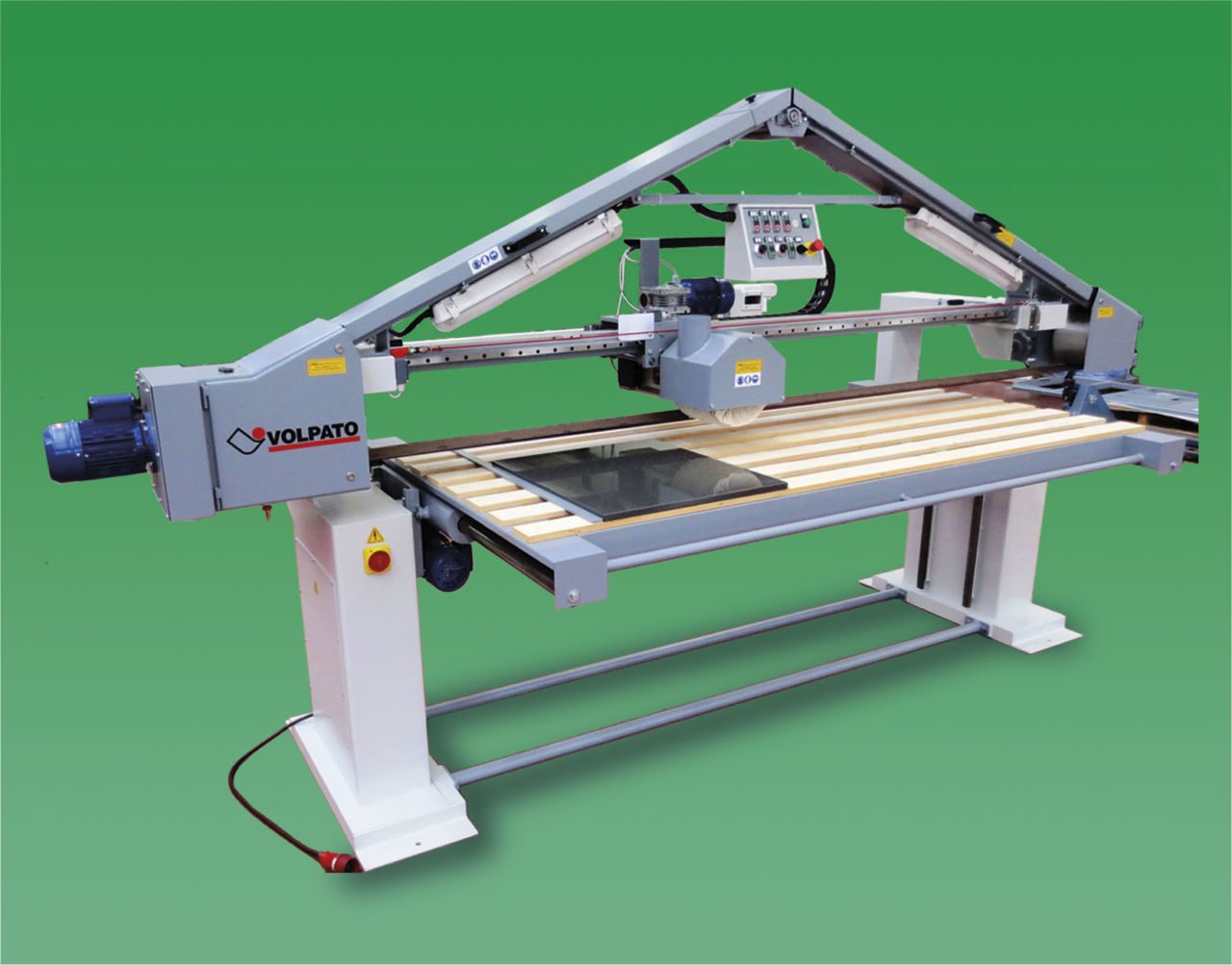

Volpato LBO 60 A/ATS Pad Sander
From
£20,085.00
(£24,102.00 inc VAT)

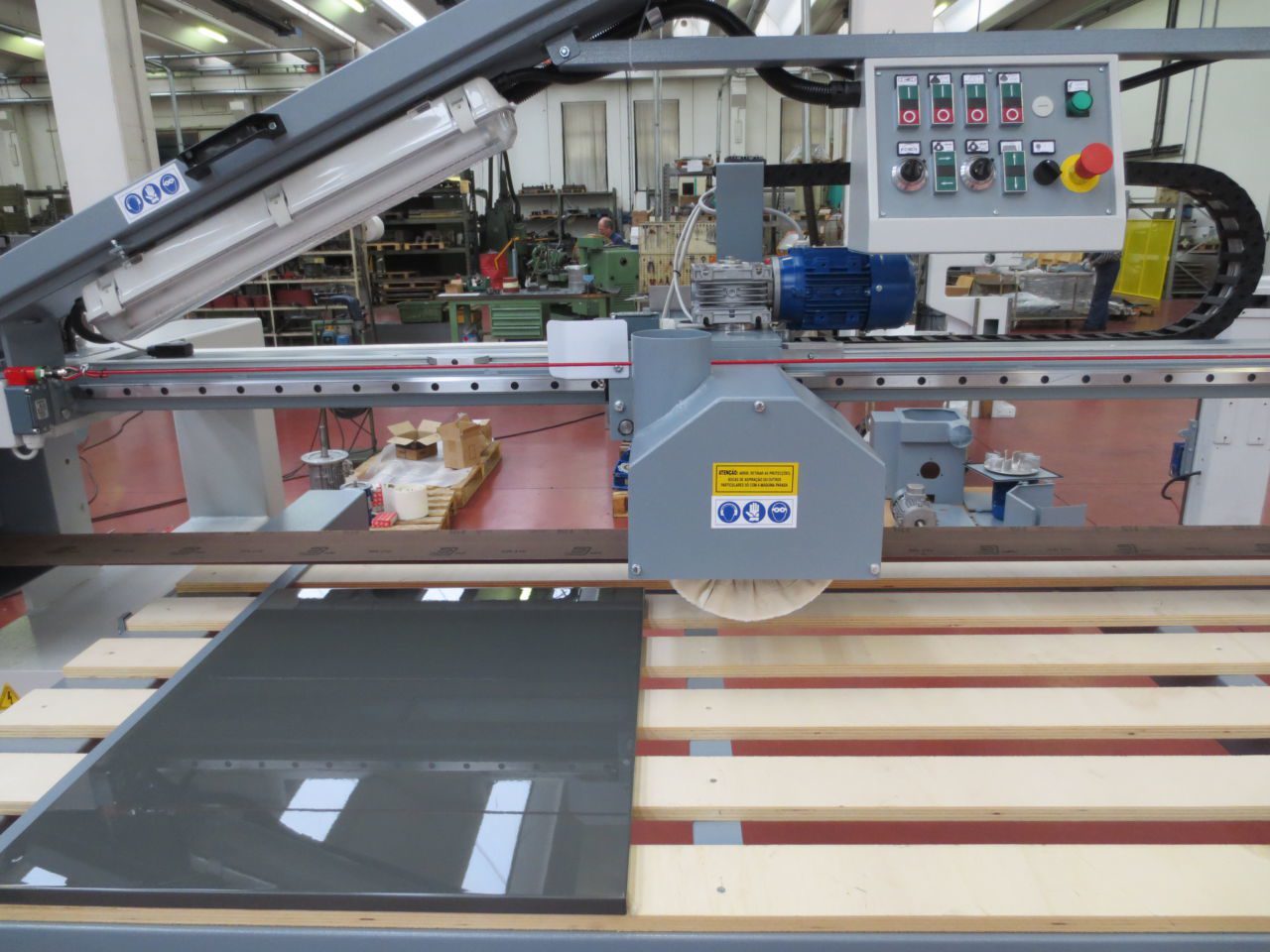

Volpato LBO 60A ATS Pad Sander for sanding flat & curved panels to a high gloss finish. This machine can also be used for structuring. Stock machine is 2500 x 900mm Table capacity with variable abrasive belt speed, brushing head with variable speed, 2300mm stroke. For use with a brush or mop and abrasive pastes for high gloss finish.
Sanding Belt Motor
3kw
Brush Motor
1.8kw
Working Table Lifting Motor
0,37kw
Translation Brush Motor
0,37kw
Speed of Abrasive Belt
3,6 - 18m/min
One Speed Brush Motor
900rpm
Variable Speed Translation of Brush
1 - 4m/min
Brushing Motor Stroke
2300mm
Vertical Stroke
660mm
Belt Dimension
150 8200mm
Belt Dust Extraction Ø
180mm
Brush Dust Extraction Ø
100mm
Maximum Ø of Brush
250mm
Maximum Width of Brush
200mm
CONSUMPTION
Total Electricity Consumption
5,6kw
Dust Extraction
1200 m³/h 30m/sec
Maximum of Thickness of Workpiece
660mm
Working Table Width
1000mm
Working Table Length
2500mm
Overall Dimensions
4200 x 1600 x 2100mm
Net Weight
900kg

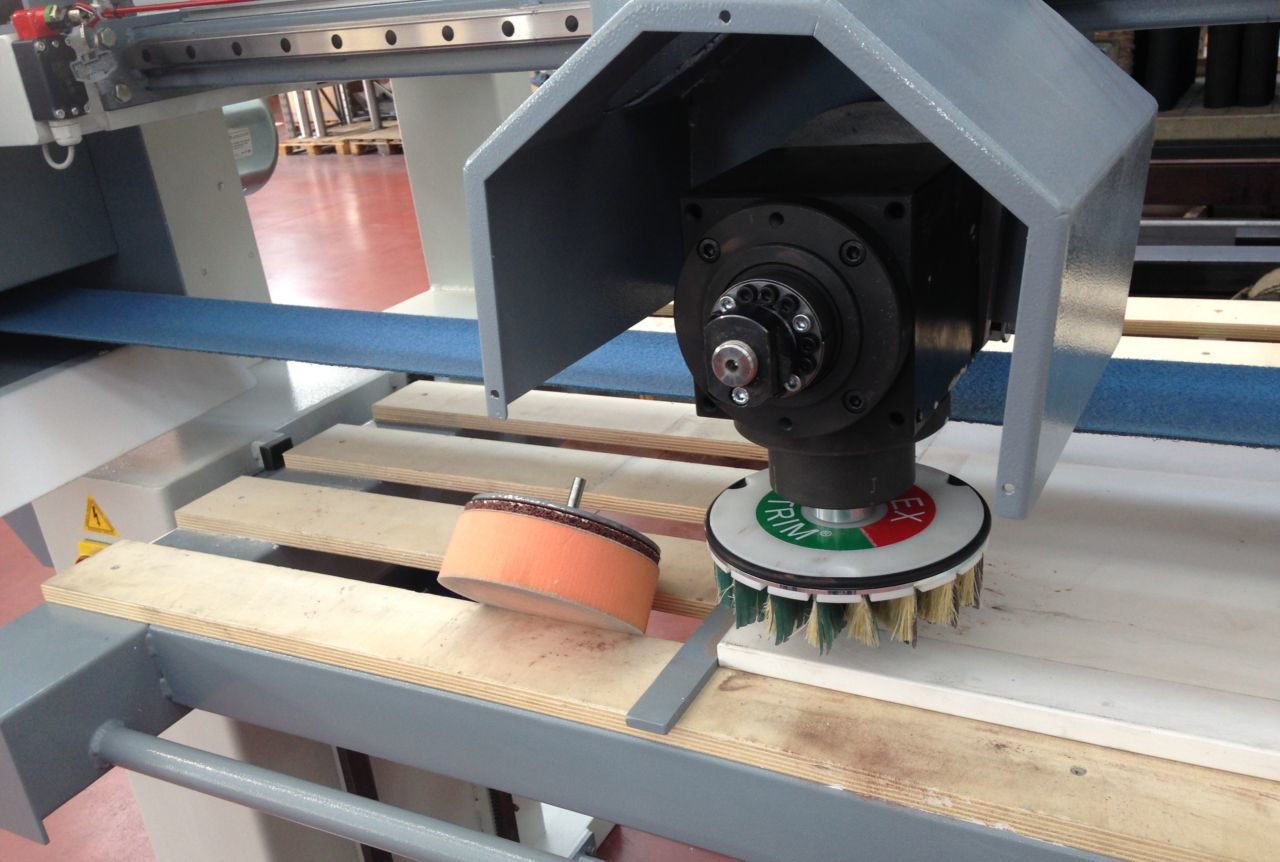

Optional Angle Head
£2400
Enquire about Volpato LBO 60 A/ATS Pad Sander
