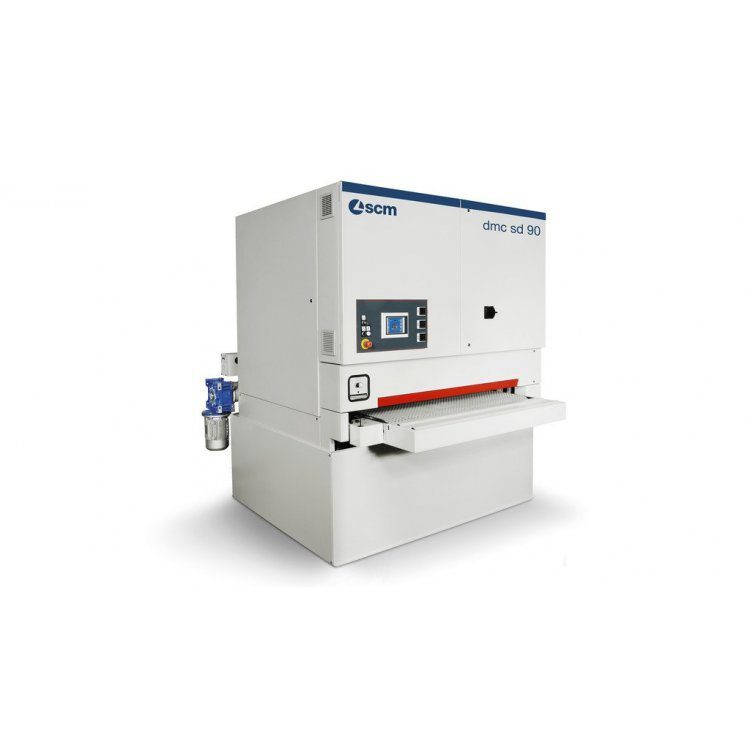

SCM DMC SD90 Wide Belt Sander

New

Available to order

From

£31,400.00

(£37,680.00 inc VAT)

Designed for the medium to high industrial companies that require diversified machining, Sandya 900 satisfies all calibrating and sanding requirements, by offering a wide range of technological solutions allowing the possibility of customising the machines compositions. The availability of offering many types of operating units such as planing units, roller units (with 175, 220, 250 and 320 mm diameters), pad units and superfinishing units guarantees the very best results on solid wood, veneer, laquer and paint operations.

  • Working Width

    1350mm

  • Min/Max Working Thickness

    4-170mm

  • Min/Max Working Thickness

    4-200mm

  • Sanding Belt Width

    1370mm

  • Sanding Belt Length

    2620mm

  • Main Motor Power

    11 (15) kw (hp)

  • 1st Unit Motor power

  • 2nd/3rd Unit Motor Power

  • Feed Belt Motor Power

    0,45/0.8 (0,6/1.1)

  • Feed Speed

    4,5/9m/min

  • Overall Dimensions

  • Height of Fixed Table

    2260 - 2460mm

  • Height of Mobile Table

    2264mm

  • Width

    1899mm

  • Length

    2190mm
