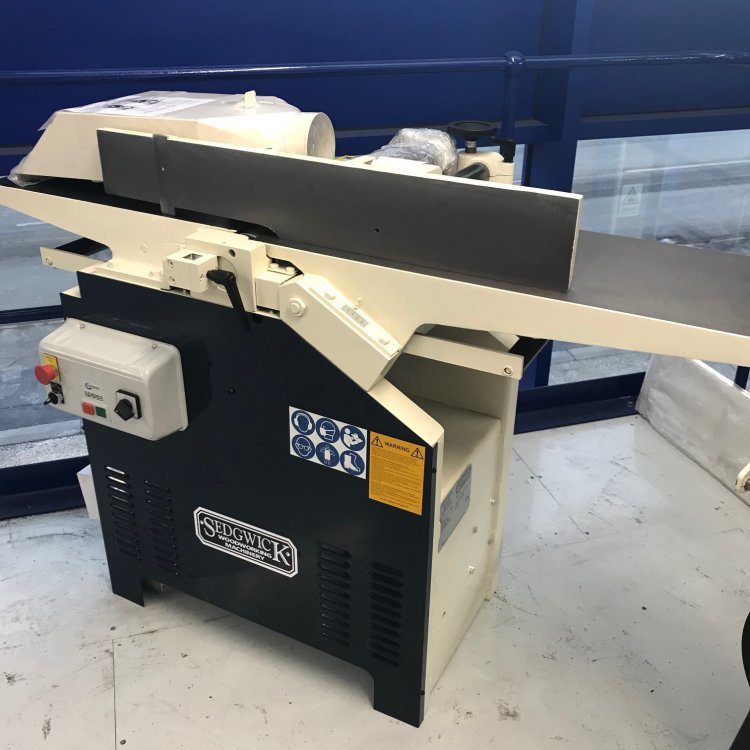

Sedgwick MBT Planer Thicknesser

New

Available from stock

£5,265.00

£4,720.00

(£5,664.00 inc VAT)

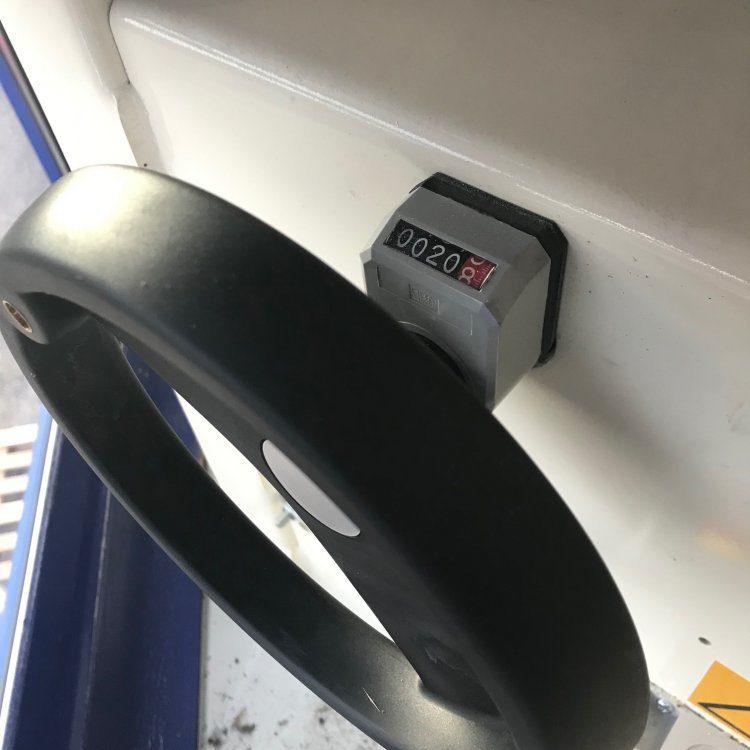

New Sedgwick MBT planer thicknesser, ideal for small to medium workshops. Traditionally built with cast iron frames, tables and fence. Both surface tables have vertical adjustments and the surfacer fence has a rack and pinion movement. A tersa cutterblock is standard and manual rising thickness table has a numerical readout for accuracy

  • Surface Capacity

    308mm

  • Thicknessing Width

    308mm

  • Thicknessing Depth

    230mm

  • Surface Table Length

    1500mm

  • Infeed Table Length

    850mm

  • Surface Table Height

    900mm

  • Cutterblock Diameter

    102mm

  • Cutterblcok Knives

    4 Tersa (optional spiral)

  • Feed Speeds

    3 phase 4.5 & 7 m/min

  • 1 phase 6 m/min

  • Tilting Angle of Fence

    00 - 450

  • Chip extraction outlet Ø

    125mm

  • Cutterblock Motor Rating

    3 phase 3.0kw

  • 1 phase 2.2kw

  • Feed Motor Rating

    0.375kw

  • Motor Full Load Current in Amps

    3 phase Cutterblock 6.5A

  • 1 phase Cutterblock 14.6A

  • 3 phase Feed 1.5/1.3

  • 1 phase Feed 2.8A

  • Starting current in Amps

    3 phase 39A

  • 1 phase 40A

  • Required Fuse Size in Amps

    3 phase 39A

  • 1 phase 40A

  • Required Cable Size

    3 phase 2.5mm

  • 1 phase 40A
