Sedgwick CPT Planer Thicknesser

New

Available from stock

£6,095.00

£5,450.00

(£6,540.00 inc VAT)

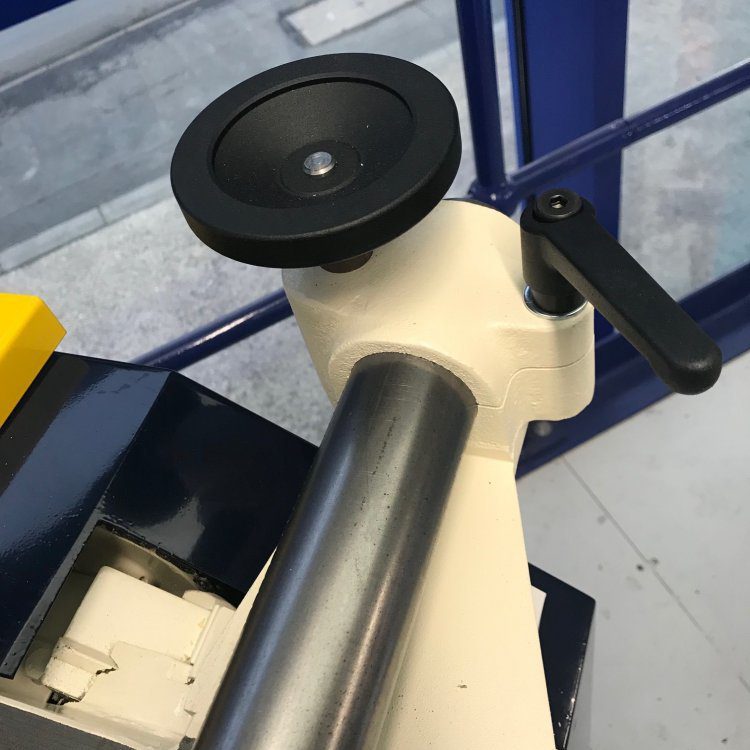

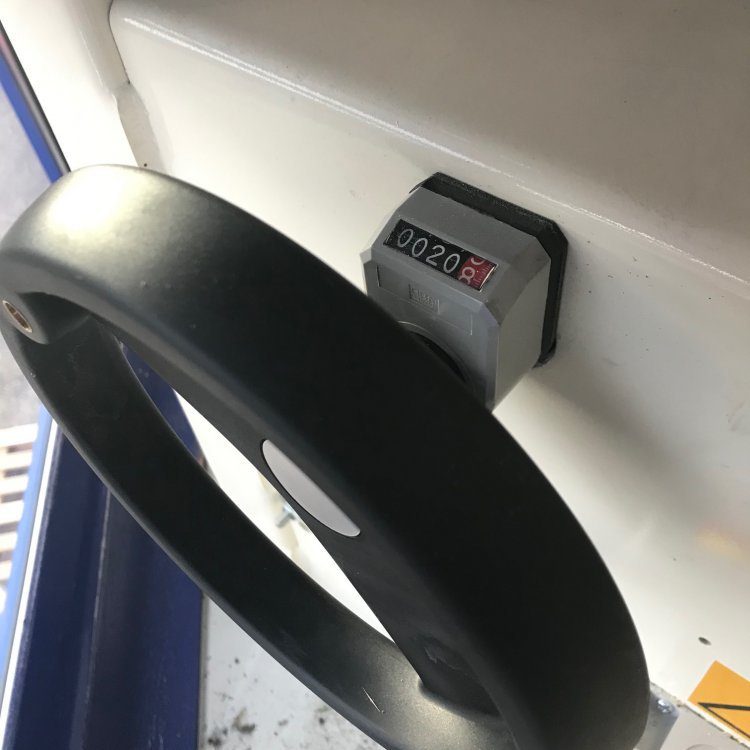

New Sedgwick CPT Planer Thicknesser, the largest in the Sedgwick range is ideal for small and medium size workshops. Traditionally built with cast iron frames, tables and fence assembly. Both surfacer tables have vertical adjustable tables and the surfacer fence has a rack and pinion movement. A tersa cutterblock is standard and the manual movement has a numerical readout for accuracy.

  • Cutterblock Diameter

    102mm

  • Dust Extraction Outlet

    150mm

  • Feed Speed

    6m/min - 240v 4.5 & 7m/min-415v

  • Knives

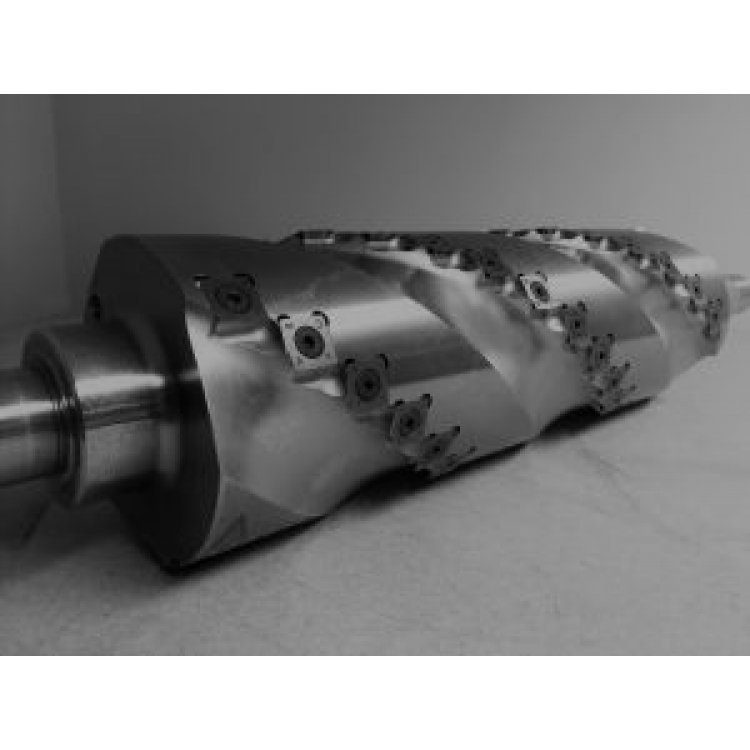

    Tersa Knife HSS (optional spiral)

  • Max Depth of Cut Planer

    1.5mm

  • Max Depth of Cut Thicknesser

    3.0mm

  • Max Planing Width

    410mm

  • Max Thicknesser Capacity

    230mm

  • Nett Weight

    435kg

  • Overall L x W x H

    1950 x 1050 x 1275mm

  • Power

    3.8kW (230V) - 4.0kW (415V)

  • Rating

    Industrial

  • Length of Table

    1700mm
