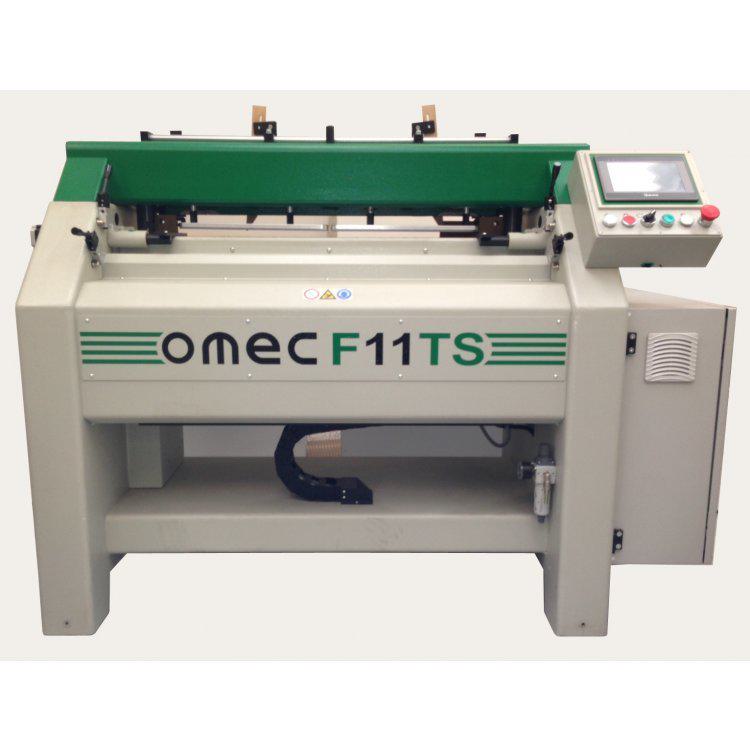

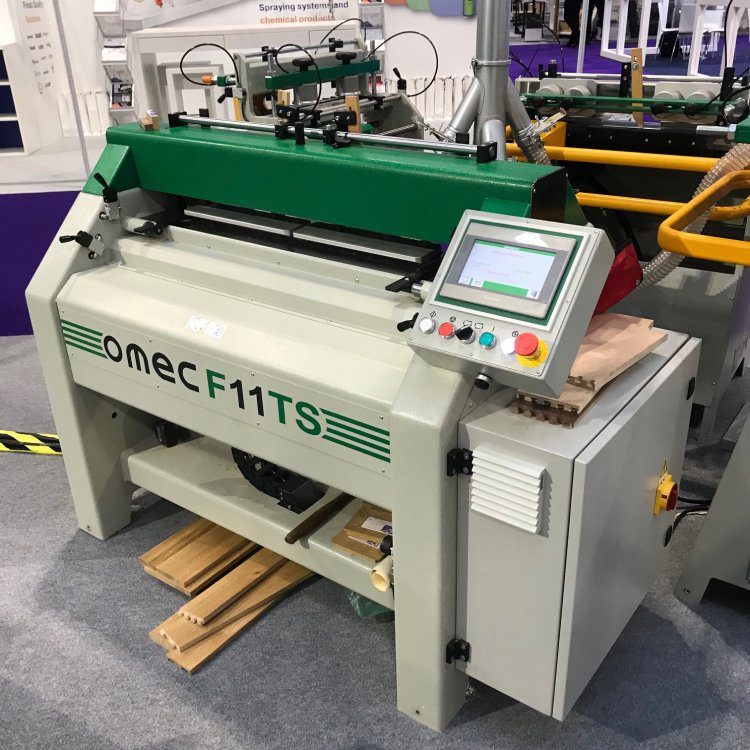

Omec F11TS Dovetailer

New

Available from stock

showroom m/c

£34,250.00

£27,500.00

(£33,000.00 inc VAT)

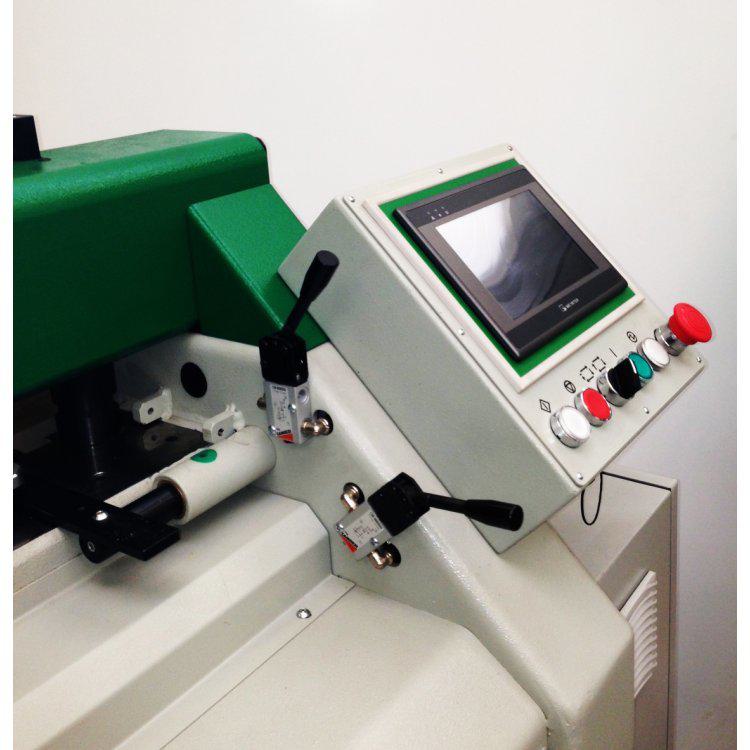

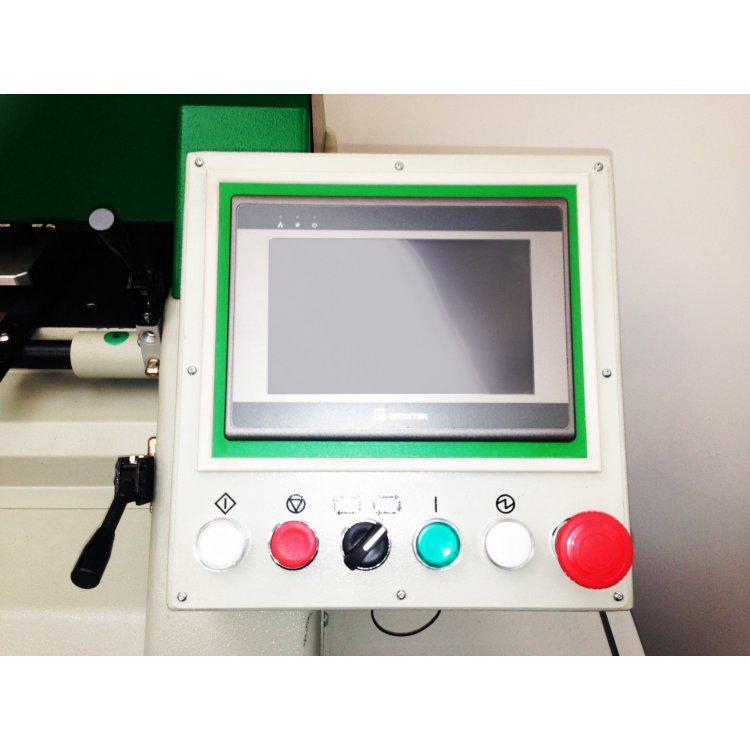

Omec F11TS production automatic dovetailer with touch screen control, Designed to produce upto 10 different types of dovetail joint. This is the most versatile and largest capacity machine in the range. Pneumatic clamping in both the vertical and horizontal hold the components securely during machining. The touch screen control allows easy and fast settings of the joint, auto movement of the side fences, pitch of the joint, feed speed, tightness of joint, joint depth and pre-scribing as well as program memory

  • Machine Power

    4.2kw

  • Working Air Pressure

    0.7m pascal

  • Number Spindles

    1

  • Spindle Speed

    18,00rpm

  • Pitch

    Fully variable or fixed

  • Machine Weight

    550kg

  • Machine Dimensions

    70 x 160 x 130cm

  • Max Working Width

    770mm

  • Max Height of Dovetail

    25mm

  • Min Front and Side Thickness

    8mm

  • Max Side Thickness

    30mm

  • Max Front Thickness

    55mm

  • Production Quantity

    100+ drawers per hour

Download Brochure
