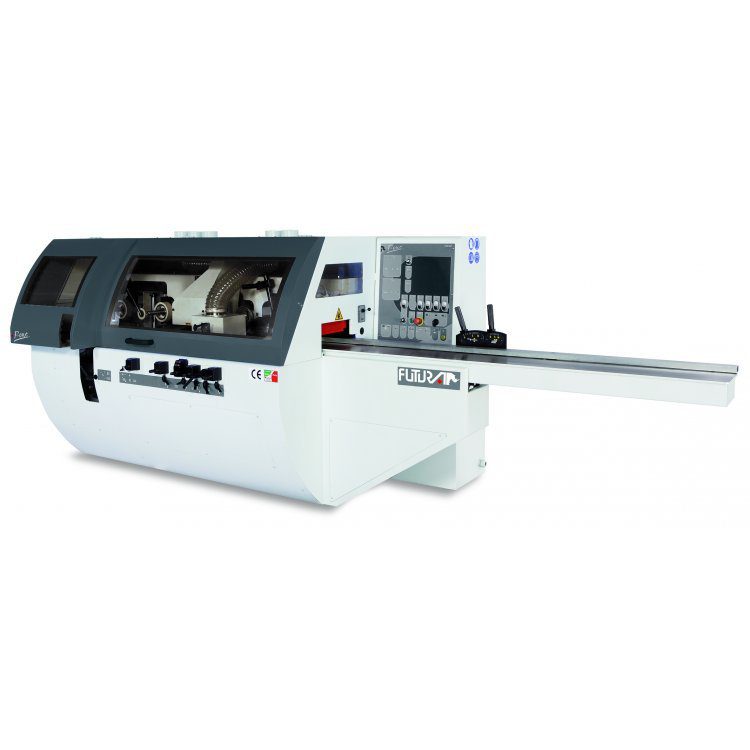

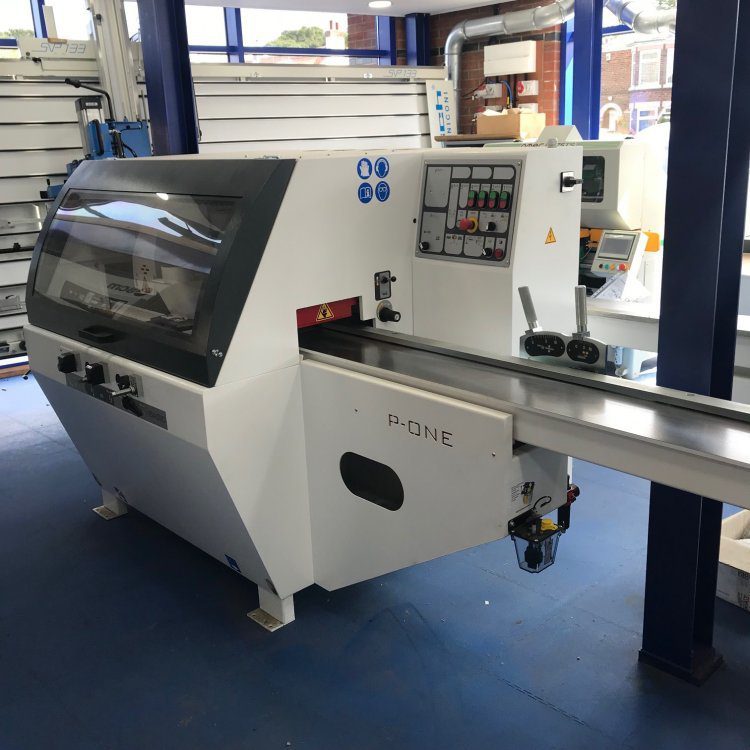

Futura Metalstar P One 23. 4/5 Head Planer Moulder

New

Available to order

From

£28,750.00

(£34,500.00 inc VAT)

Futura P One 23. 4/5 Head Planer/Moulder 100% Itallian manufactured. High spec: Single Piece fabricated base. In-feed table with ground steel bars, Independent motor unit to each spindle, Poly “V” Drive Belts instead of flat belt, Powered rise and fall, Pneumatic Pressures to the Feed Rollers, Pre – Planer roller with pneumatic exclusion, Feed Rollers driven by Double Chain Drive and Cardan Joints, Variable Feed Speed, Moulding Capacity on Both side Heads & Top Head, Numerical Readouts to the Spindle movements, Quick Tool Set Up on Both Vertical Spindles & Top Head, Bed lubrication pump to reduce friction when feeding, Air Blowers to reduce feeding when feeding timber, Tersa cutter blocks 4 Knife, Min Working Width Kit with 10mm rollers, Additional feed wheel extention shaft with feed wheel infront of the LH Vertcal Spindle, Optional 5 Universal Head.

  • Max Finished Size

    220mm

  • Min Working Width

    25mm

  • Min Working Width with 10mm Roller Kit

    15mm

  • Max Working Height

    130mm

  • Min Working Height

    8mm

  • Min Work Piece Length

    400mm

  • Spindle Speed

    6000rpm

  • Shaft Size

    40mm

  • Indeed Table

    2300mm

  • Variable Feed Speed via Inverter

    4 - 20 m/min

  • Feed Roller Ø

    130mm

  • Min/Max Moulding Tool

    110/180mm

  • Max Tool Beneath the Worktable

    160mm

  • Motors

  • Planer Spindle Motor

    7.5hp

  • RH Spindle Motor

    5.5hp

  • LH Spindle Motor

    5.5hp

  • Upper Horizontal Motor

    7.5hp
