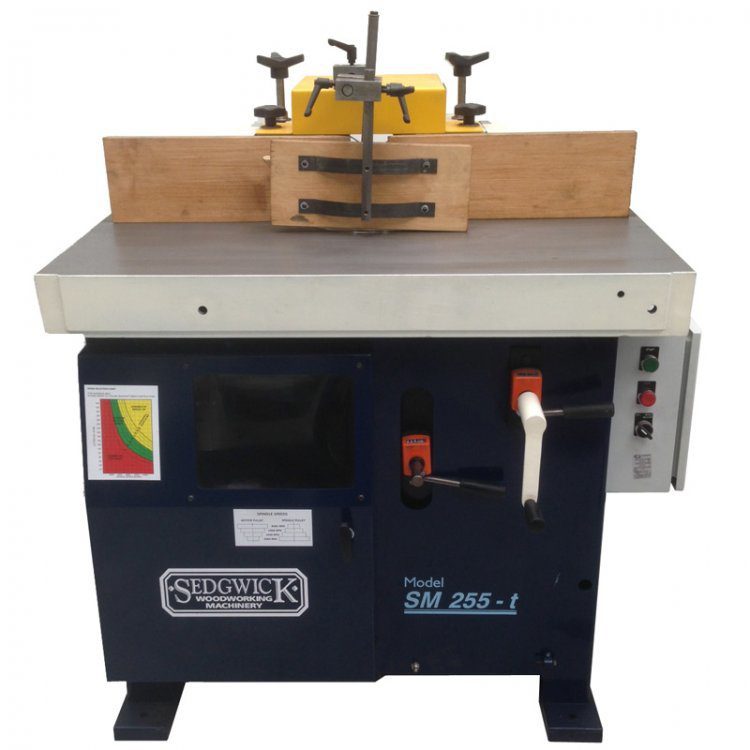

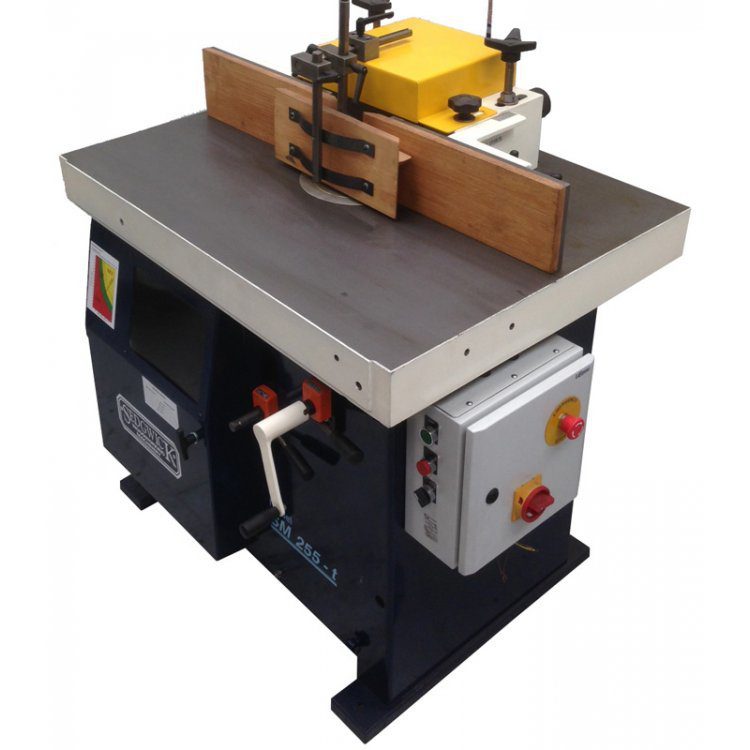

Sedgwick SM255t Spindle Moulder
From
£5,328.00
(£6,393.60 inc VAT)
Sedgwick SM255 Spindle moulder is unlike the majority of manufacturers spindle moulders in that it is designed with a backward tilting spindle. Working from underneath the stock makes for safer working, without restriction on the size of stock being machined, and without obstruction to the pressure guards or power feed. Wood chips are directed into the exhaust outlet in the machine base.
Table Size (LxW)
1000 x 750mm
Table Height
880mm
Max Cutterblock Ø
150mm
Max Profiling Cutter Ø
255mm
Max Tenoning Cutter Ø
310mm
Max Retractable Tool Size
180 x 65mm
Spindle Ø
30mm (optional 11/4")
Spindle Length
140mm
Spindle Speeds
3000, 4500, 6000 & 8000rpm
Max Spindle Projection Above Table
165mm
Spindle Stroke
90mm
Tilt
+5 - 45°
Fence Plates
150 x 425mm
Extraction Outlets
125 + 100mm
Air Volume Required
1870cmh
Net Weight
425kg
Dimensions
1120 x 760 x 1440mm
