SCM Startech 27 Multi Drill

New

Coming soon

£7,795.00

£7,150.00

(£8,580.00 inc VAT)

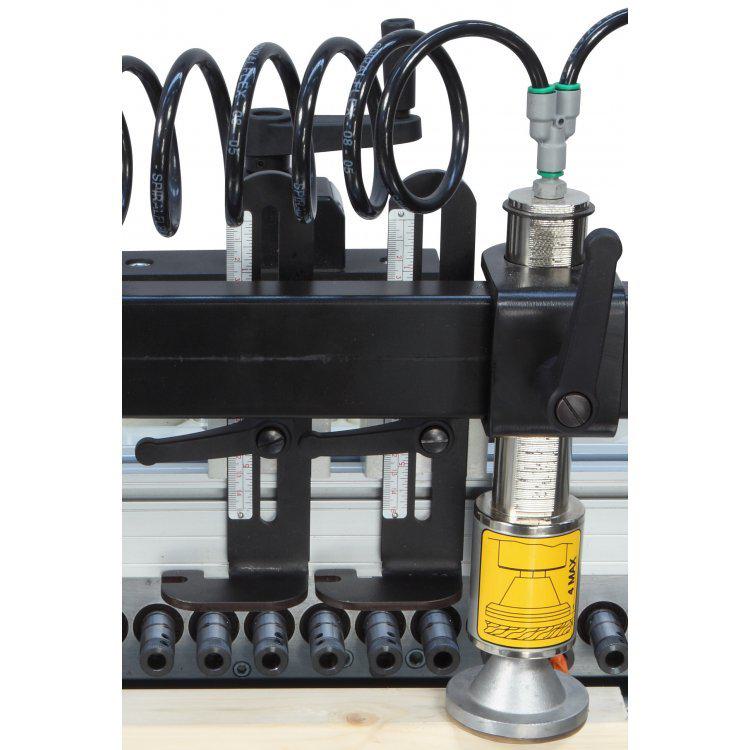

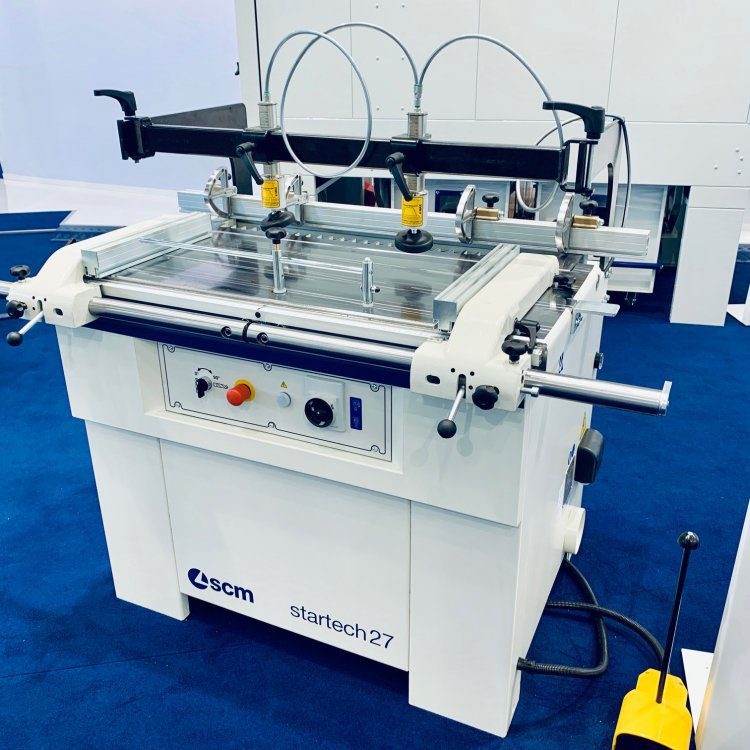

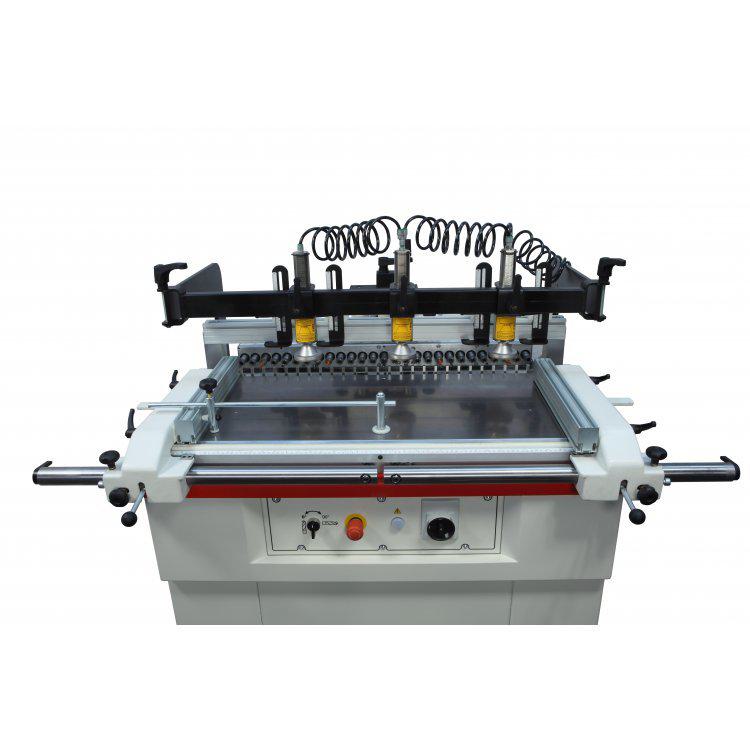

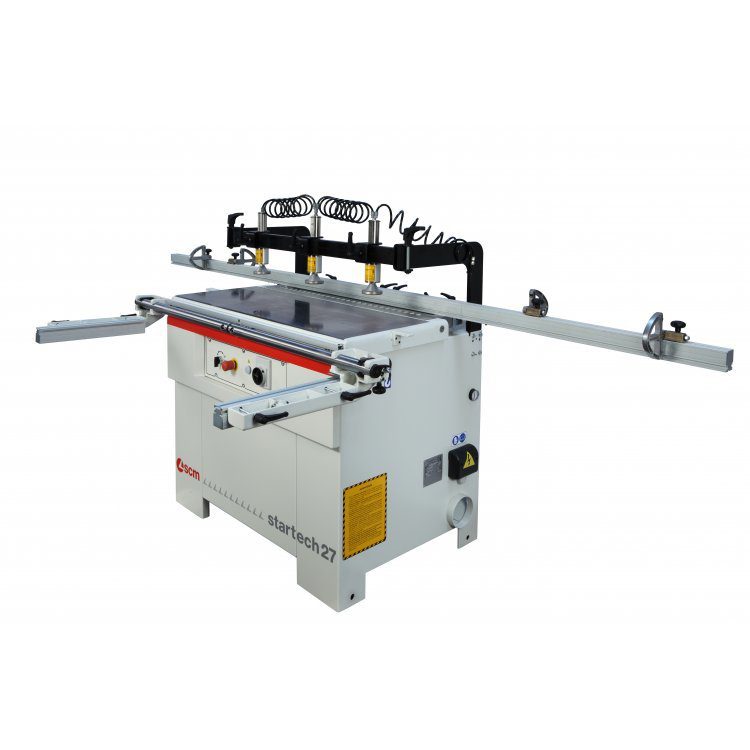

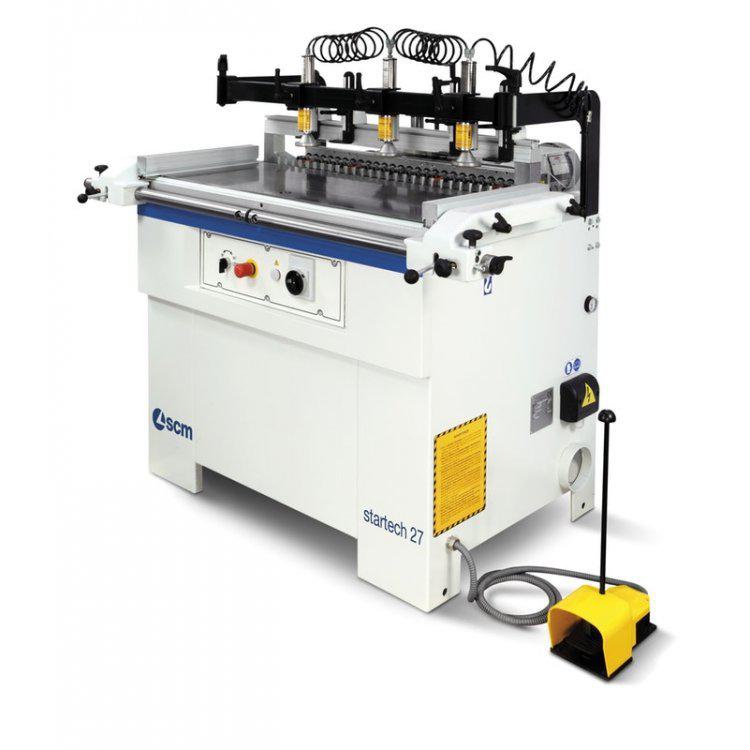

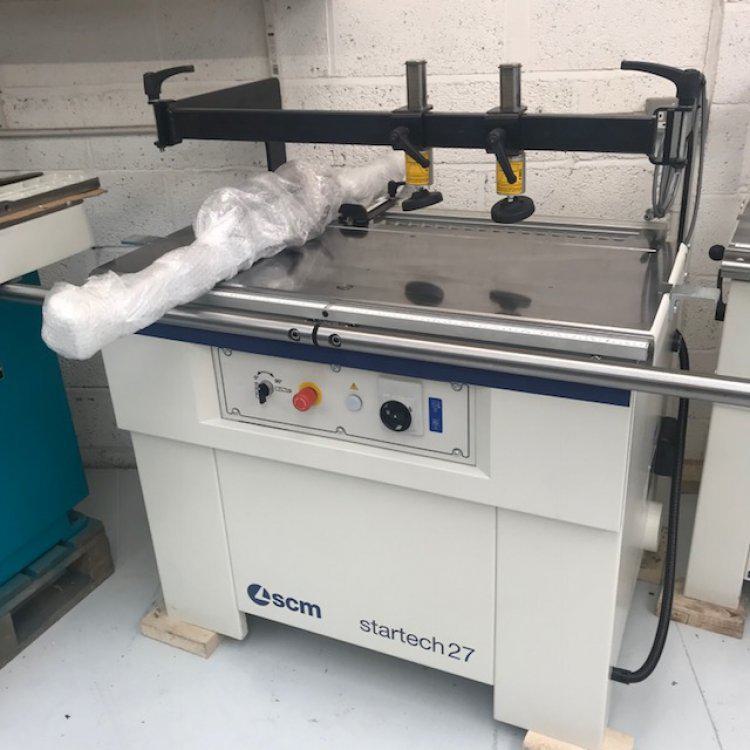

Startech 27 Single Head Multi Boring Machine comes pre-configured with 27 quick change spindles. The drilling head can be positioned either vertically or horizontally by a selector and pneumatic cylinder. There are cast iron left and right fences and a 3m aluminium fence with 4 flip over stops, which can be positioned front to back or right to left. 3 vertical clamps come as standard as well as 18 quick release chucks.

  • Number of Spindles

    27

  • Centre Distance of Spindles

    32mm

  • Motor Power

    2hp

  • Max Tool Length

    80mm

  • Max Tool Ø

    40mm

  • Max Panel Width within the Gantry

    1025mm

  • Min Panel Thickness

    10mm

  • Max Panel Thickness

    60mm

  • OPTIONS

  • Hinge Boring Aggregates

  • Additional Pneumatic Cramp

  • 45°Boring Plate

  • Narrow Pieces Kit

  • Additional Quick Release Chucks
