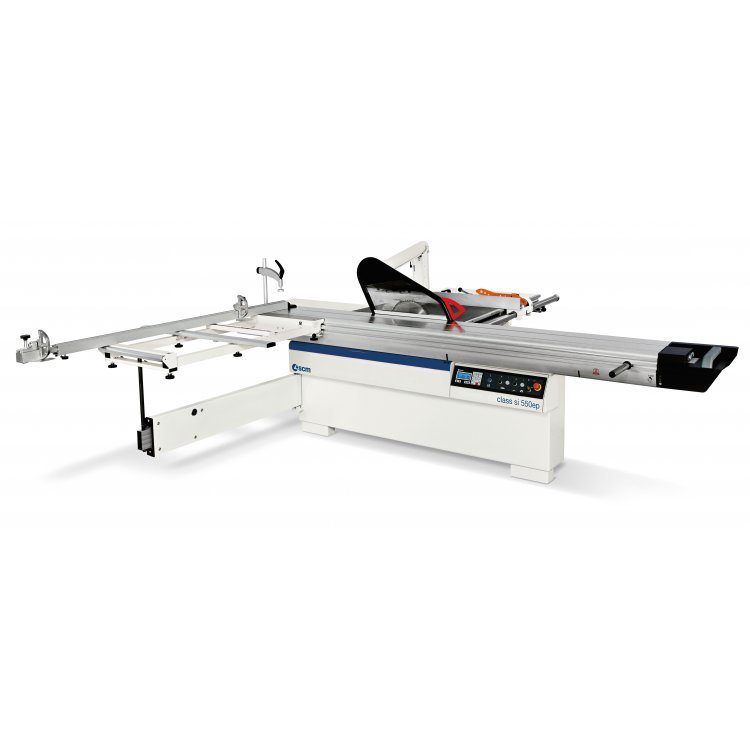

SCM SI 550 EP Class Large blade Heavy Duty Sliding Table Panelsaw

New

Available to order

From

£19,995.00

(£23,994.00 inc VAT)

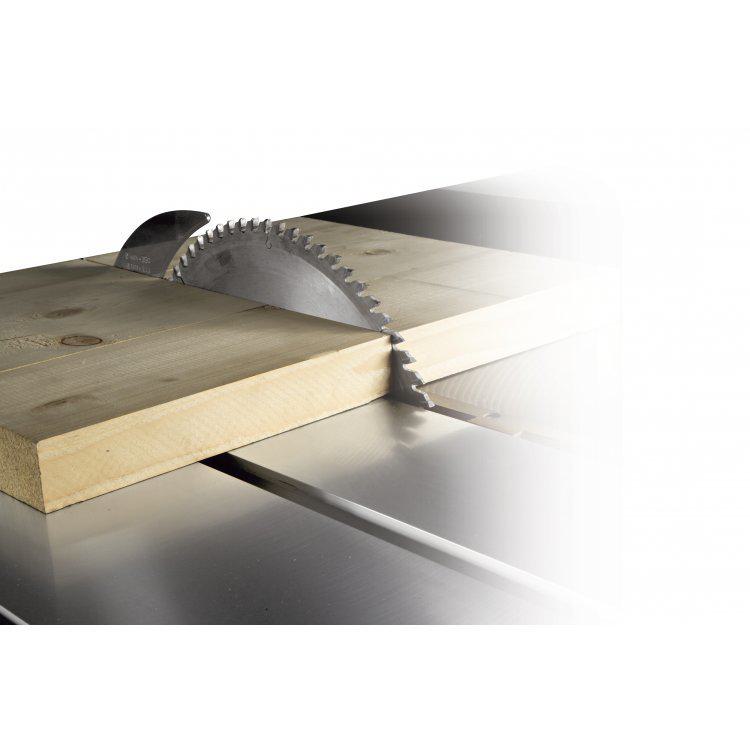

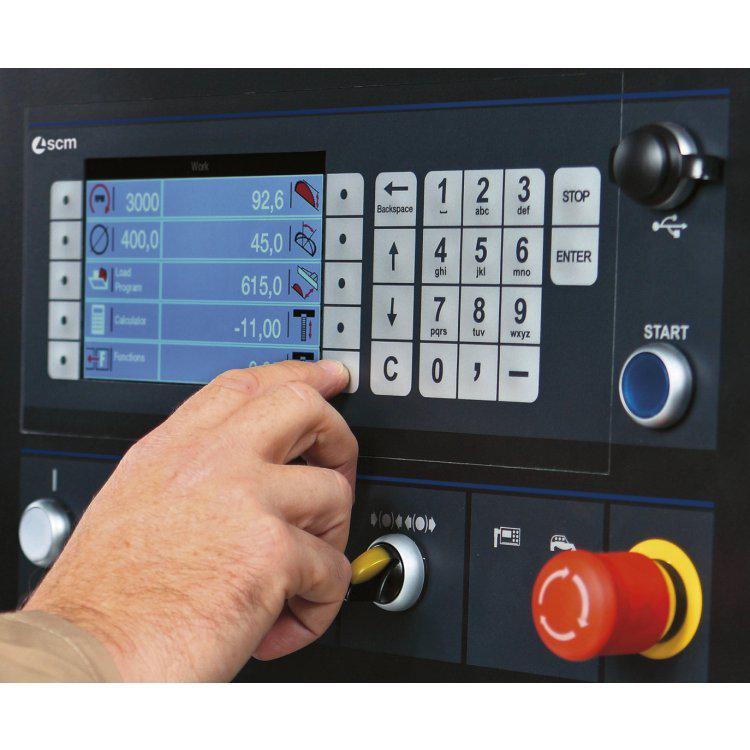

SCM SI 550EP Class Sliding Table Panelsaw with 550mm Ø main sawblade for cutting 200mm deep. A machine aimed at the timber construction and insulated panel market. It comes as standard with a large 10hp main motor with auto star delta starting and an easy electronic control mounted in the base to power the sawblade up and down and to tilt the blade. The highly accurate class sliding table with straightness tolerance of 0.05mm and sturdy cast iron chasis,make this machine into a genuine work horse

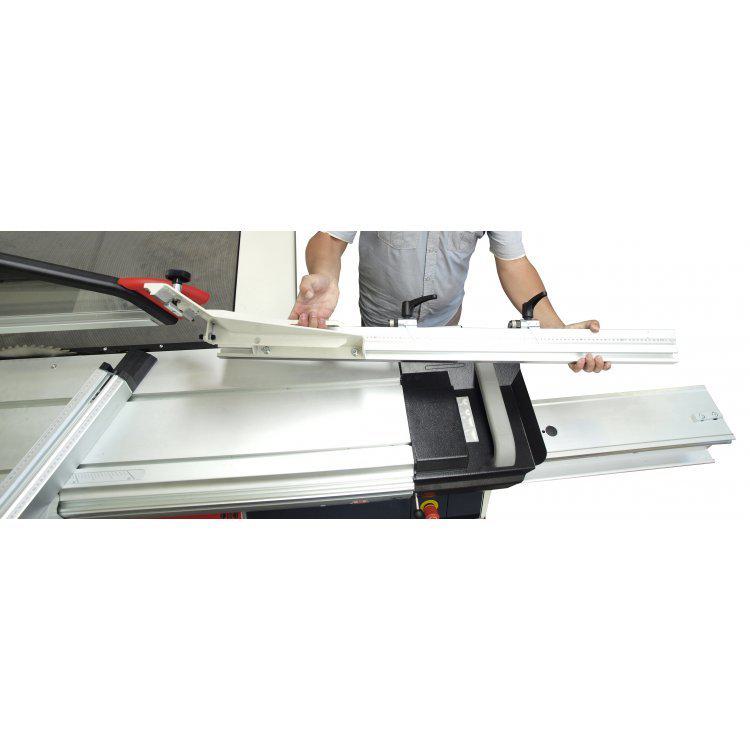

  • Sliding Table

    3200mm

  • Rip Fence Capacity

    1270mm

  • Max Main Blade

    550mm

  • Max Depth of Cut

    200mm

  • Motor

    10hp

  • Auto Star Delta Starting

  • Blade Tilt

    0 - 45°

  • Blade Speeds

    2500/3500/5000rpm

  • Ready 3 Version

  • OPTIONS

  • Surface Reinforcement for Abrasive Materials

  • Stop/Start for the Sliding Table

  • Quick Lock Outrigger

  • Crosscut Fence with LCD Readout

  • Larger Motor

  • Rip Fence with LCD Readout

Download Brochure
Close Button

Enquire about SCM SI 550 EP Class Large blade Heavy Duty Sliding Table Panelsaw
