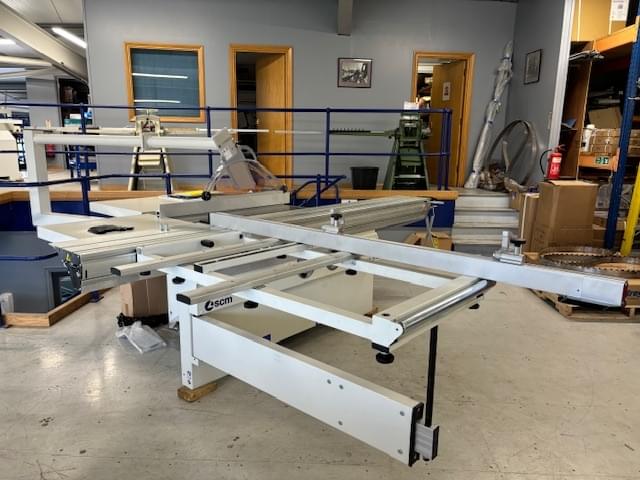

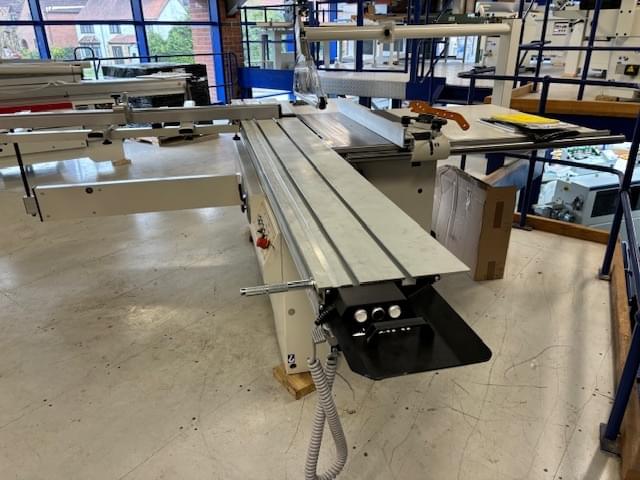

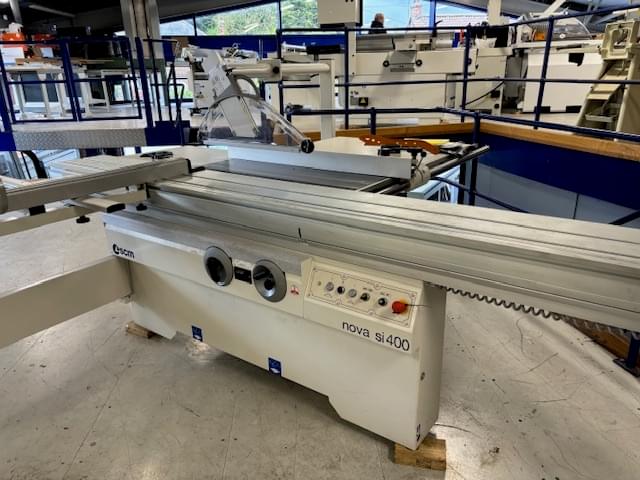

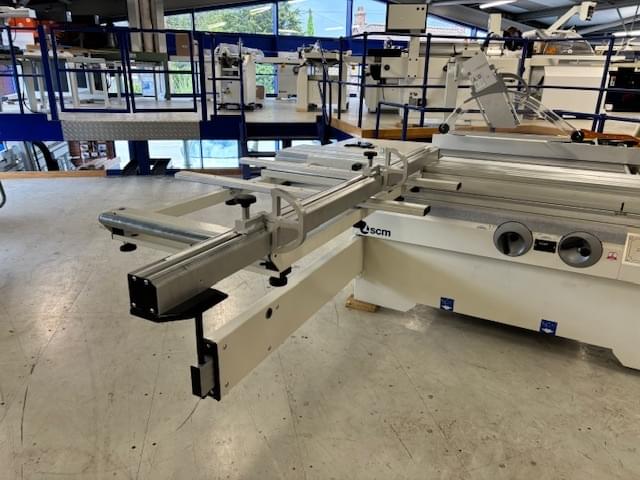

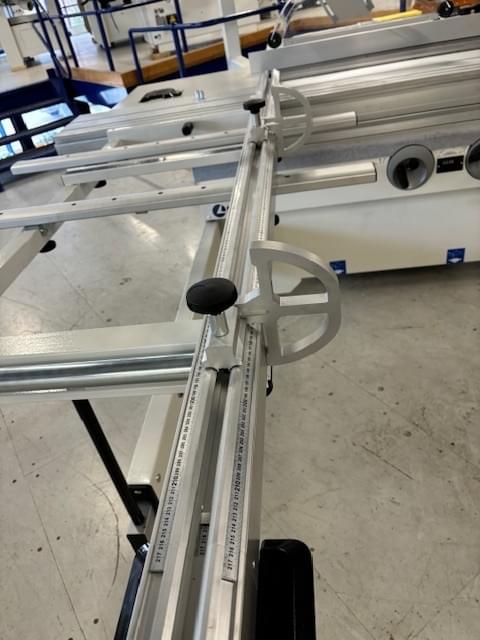

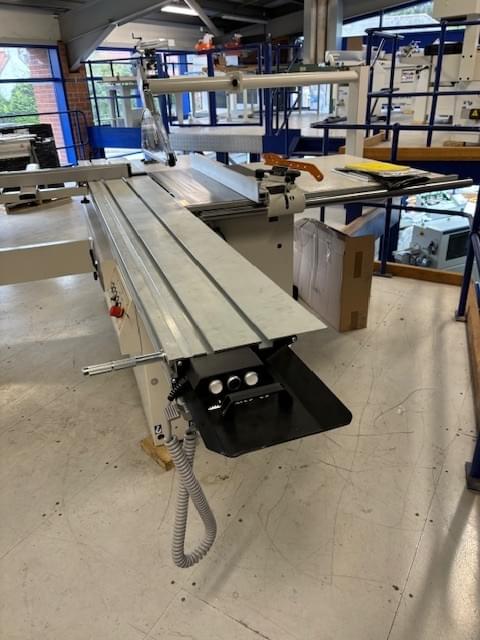

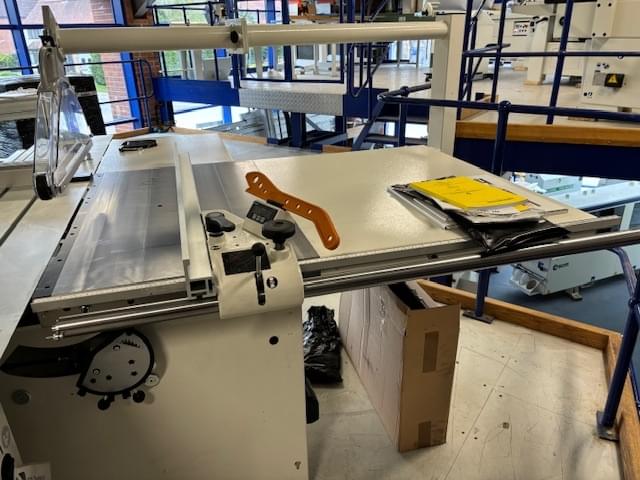

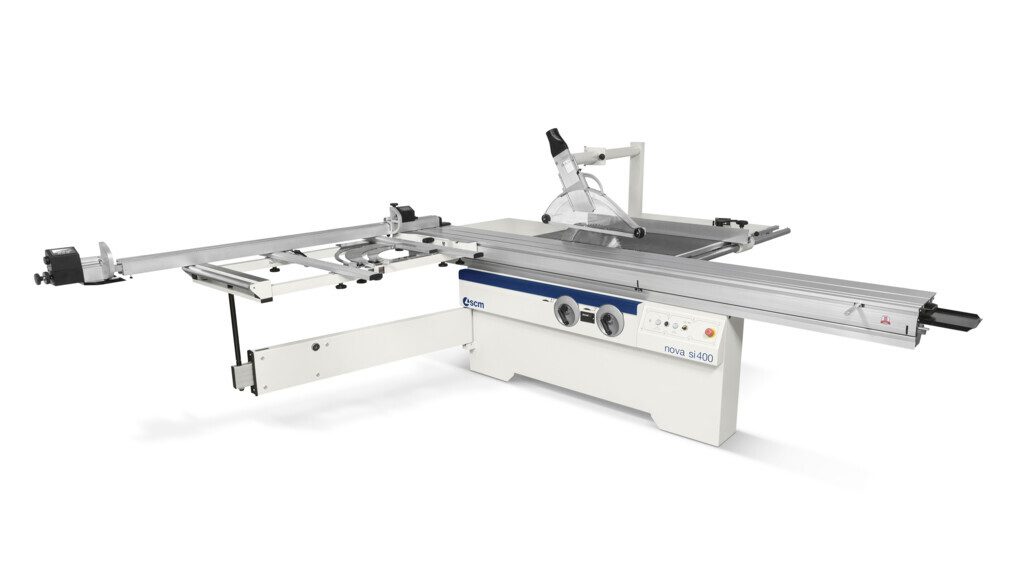

SCM SI 400 Nova Panelsaw

New

Available from stock

£12,750.00

£10,650.00

(£12,780.00 inc VAT)

New SCM SI400 Nova Sliding Table Panelsaw with 400mm blade for professional use. Sturdy saw unit structure and quality sliding table, to guarantee accuracy. The large diameter sawblade is powered by a 7.5hp main motor and independent scoring unit with 1.2hp motor. The machine has a tilting sawblade with numerical readout and full overhead blade protection guard with dust extraction outlet. The sliding table 3200mm long has an additional stop/start control fitted to the end of it for ease of use and safety. A large outrigger with 2 extra panel supports and heavy duty crosscut fence with 2 stops. on the right of the sawblade the cast iron rip fence runs along a 45mm dia solid steel bar with fabricated table extension

  • Sliding Table

    320mm

  • Rip Fence Capacity

    1270mm

  • Max Blade Size

    400mm

  • Max Depth of Cut

    138mm

  • Blade Tilt

    0 - 45°

  • Main Motor

    7.5hp

  • Scorer Motor

    1.2hp

  • Numerical Readout to the Angle

  • Full Overhead Blade Protection

  • Stop/Start Control Fitted to the Sliding Table

  • Options:

  • LCD Readout to the Rip Fence

  • Parallel Cutting Device

  • LCD Readouts to the Crosscut Fence

Download Brochure
