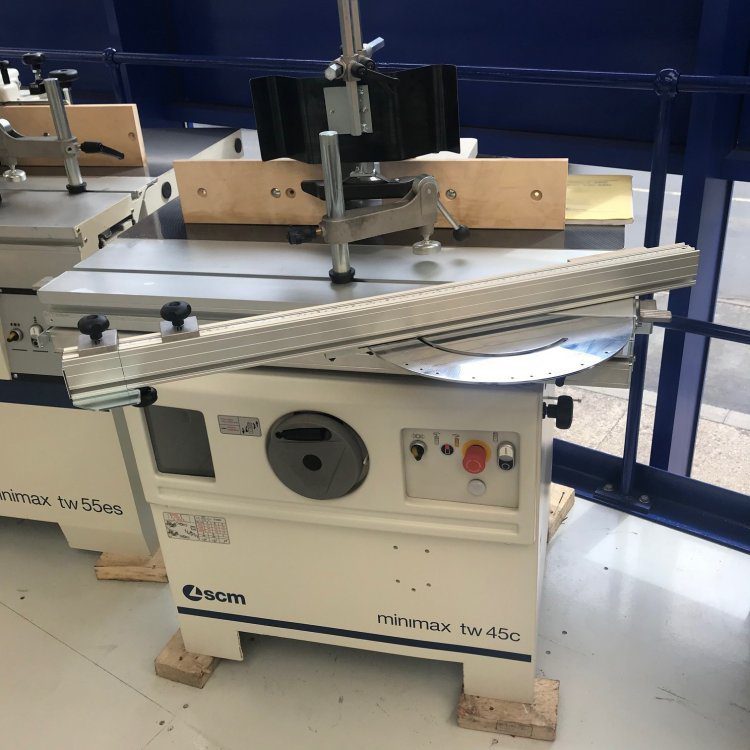

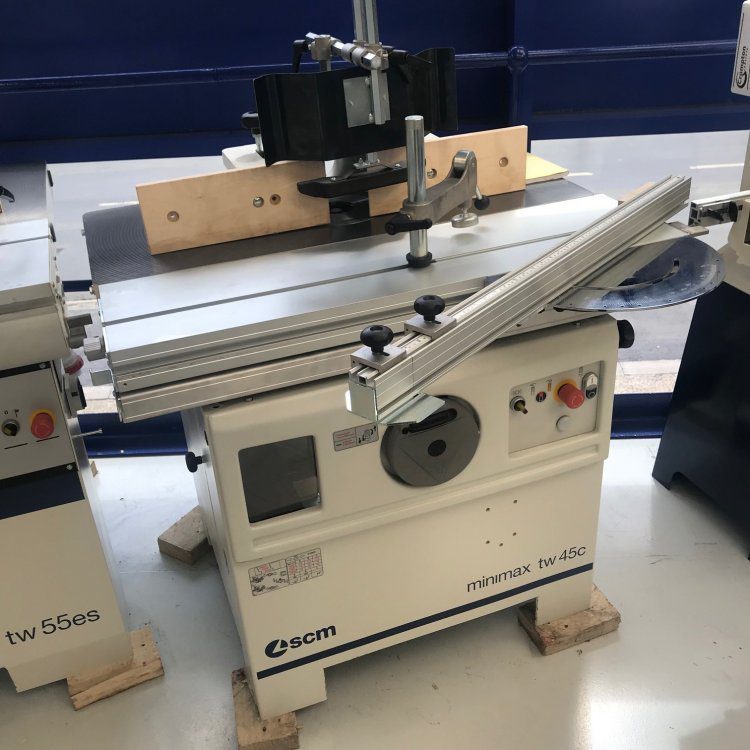

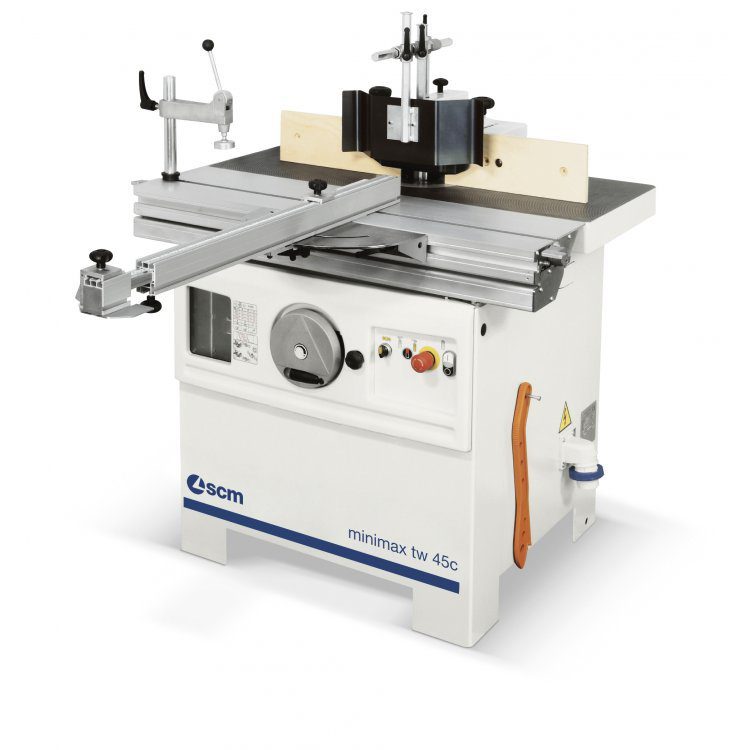

SCM Minimax TW45C Spindle Moulder
1ph machine
£0.00
£4,750.00
(£5,700.00 inc VAT)
SCM Minimax TW45C Spindle Moulder to Ce regs, comes complete with Sliding table and tilting, 3 spindle speeds and brake motor. An adjustable spindle moulder fence with micro adjustment is Included as well as a ring fence for shaped work
Infeed & Outfeed Support
Available
1ph
Useable Spindle Length
108mm
Spindle Speed
3500, 7000, & 10,000rpm
Max Tool Ø
2100mm
Max Tool Ø Beneath the Table
180mm
Motor Size
2.5hp 240v
4hp 415v
Shaft Size
30mm
Tilting of Shaft
0 - 45°
Enquire about SCM Minimax TW45C Spindle Moulder
