Putsch SVP 420cs Vertical Panelsaw with Clamping System
From
£41,595.00
(£49,914.00 inc VAT)

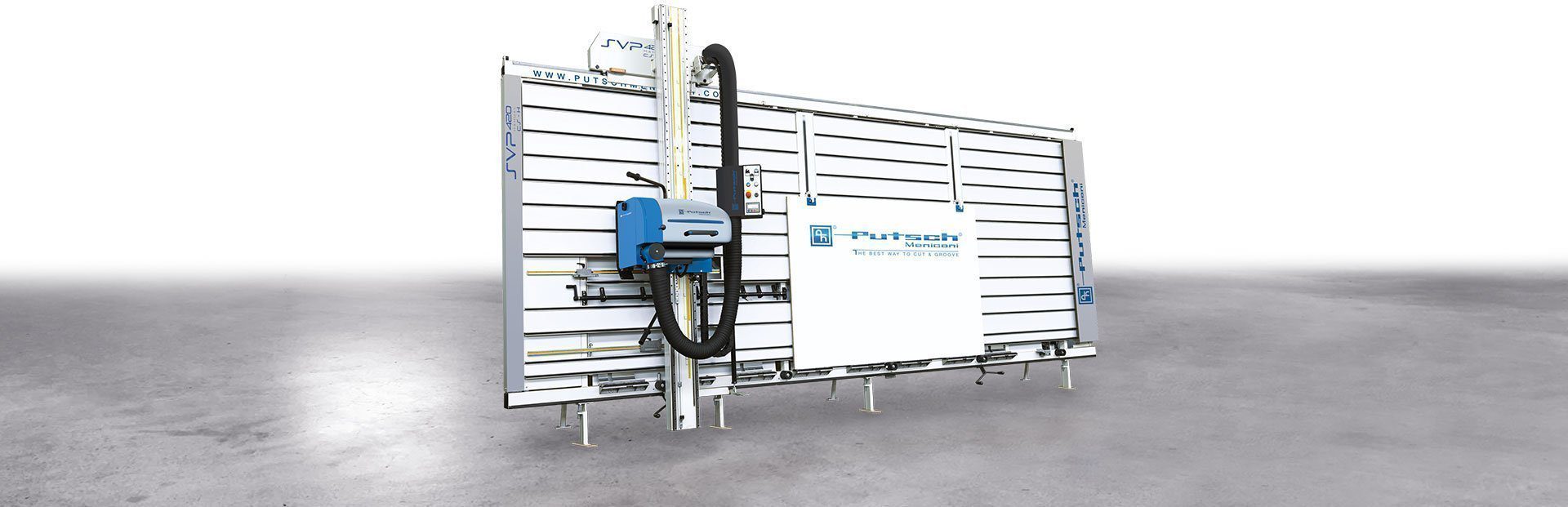

Putsch SVP 420cs Vertical Panelsaw is a heavy duty manual cutting vertical panelsaw which has a removable clamp system for lifting panels up to 180kg. With the removal of the clamps it has the same features as the SVP 420 with automatic moving back frame and lift up panel rollers for easy panel movement. Fully compliant to Ce regulations including safety devices & sound proofing

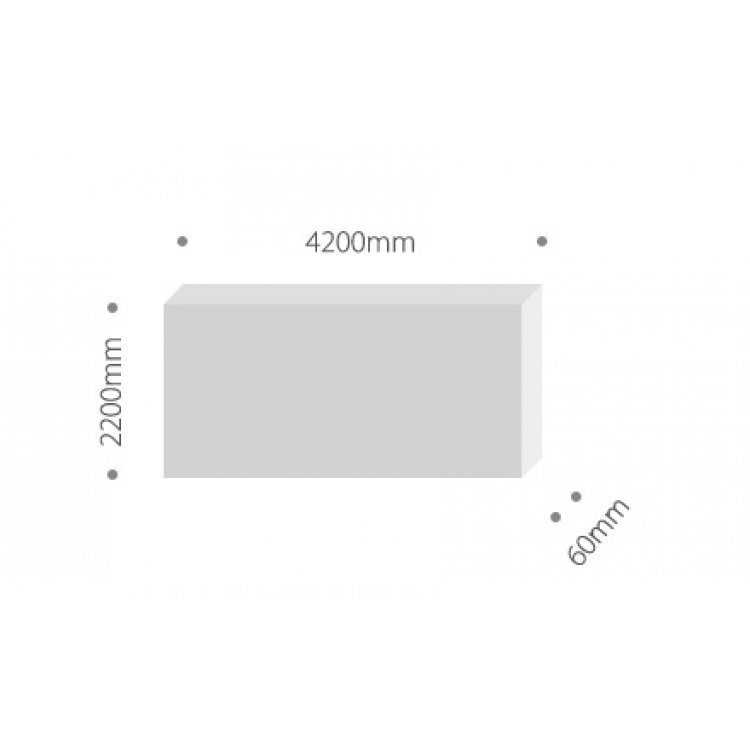

Length of Cut
4200mm
Max Height of Vertical Cut
2200mm
Max Height of Horizontal Cut
1800mm with Clamps
2080 without Clamps
Max Depth of Cut
35mm with Clamps
60mm without Clamps
Motor
5hp
Sawblade Speed
5300rpm
Scoring Motor
0.25hp
Scoring Blade Ø
80mm
Main Blade Ø
250mm
Enquire about Putsch SVP 420cs Vertical Panelsaw with Clamping System
