Putsch SVP 133 Vertical Panelsaw Automatic Shifting Frame
From
£17,450.00
(£20,940.00 inc VAT)

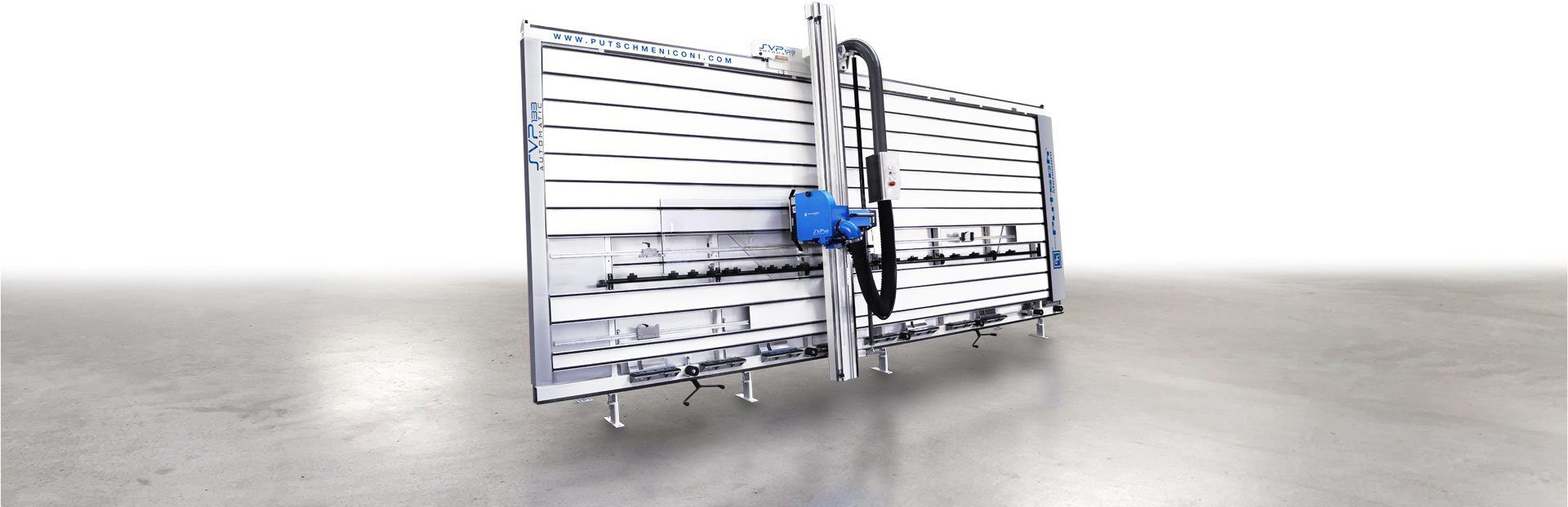

Putsch SVP 133 Vertical Panelsaw the standard machine comes with electronic moving frames, lift up rollers for panel movement and horizontal repeat cut device. They have one stop for vertical cuts and four stops for horizontal cutting, a self braking motor and short piece cutting device. All scales are metric. They are compliant to Ce regulations which includes safety devices & sound proofing

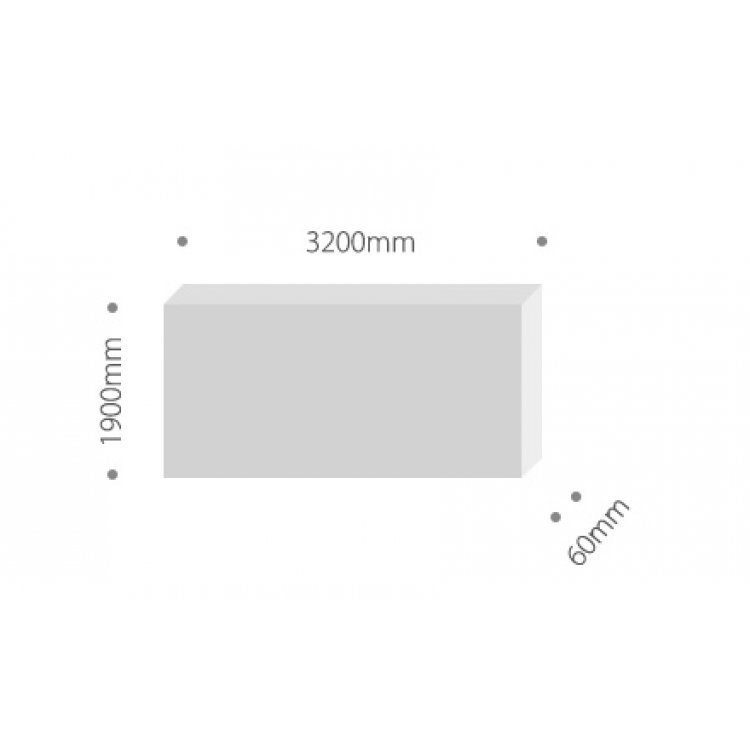

Length of Cut
3200mm
Height of Cut
1900mm
Max Height of Horizontal Cut
1700mm
Max Depth of Cut
60mm
Motor
5hp
Sawblade Speed
5300rpm
Sawblade Bore Size
30mm
Sawblade Ø
250mm
OPTIONS
LCD Readouts
£1499 each
Rotary Scorer
£2900 Factory Fitted Option
TRK Dust Hood
£775
