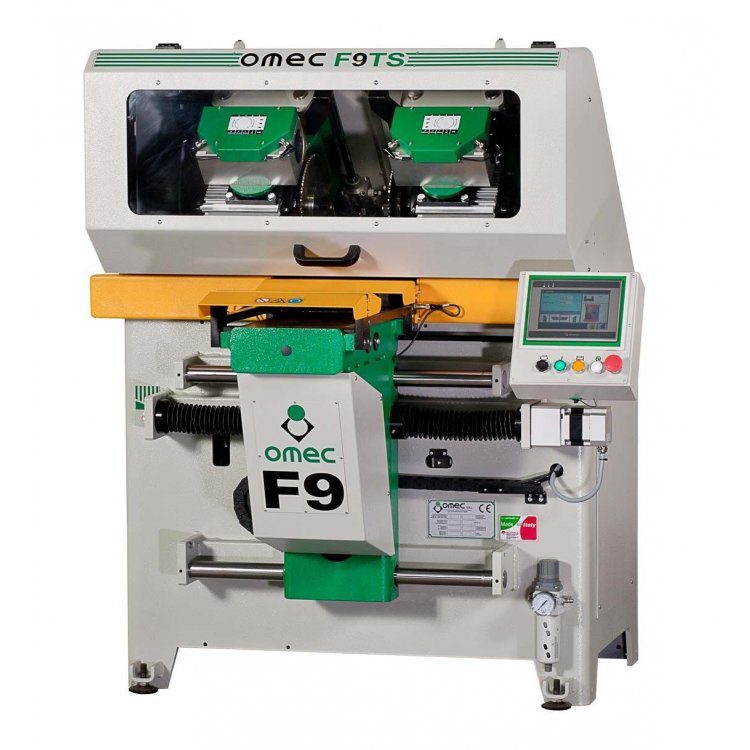

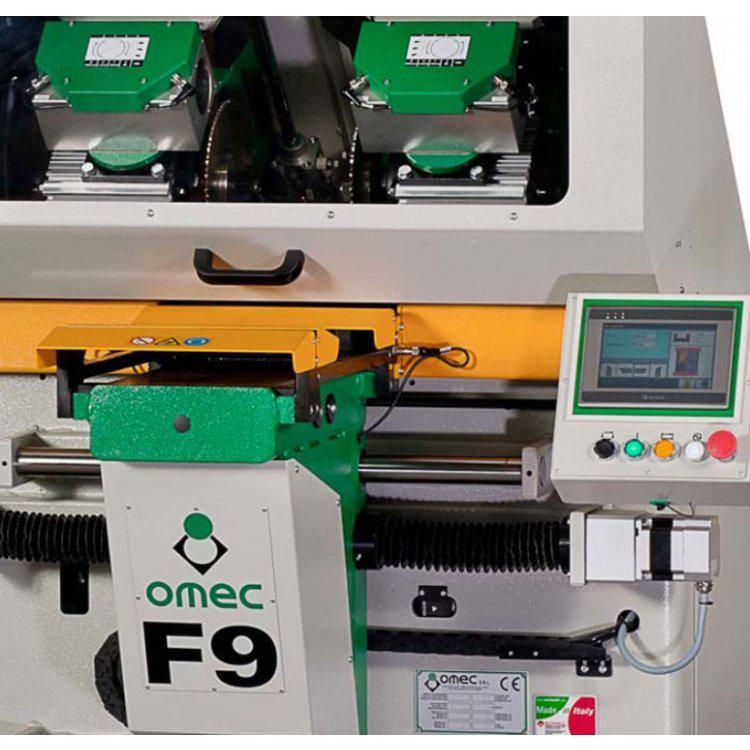

Omec F9TS Door Casing Jointing Machine

New

Available to order

From

£36,200.00

(£43,440.00 inc VAT)

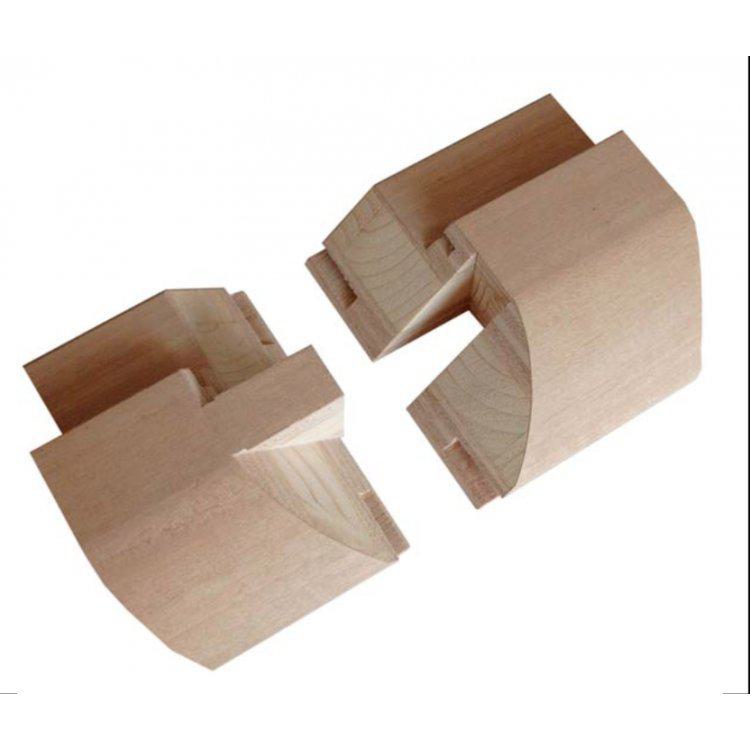

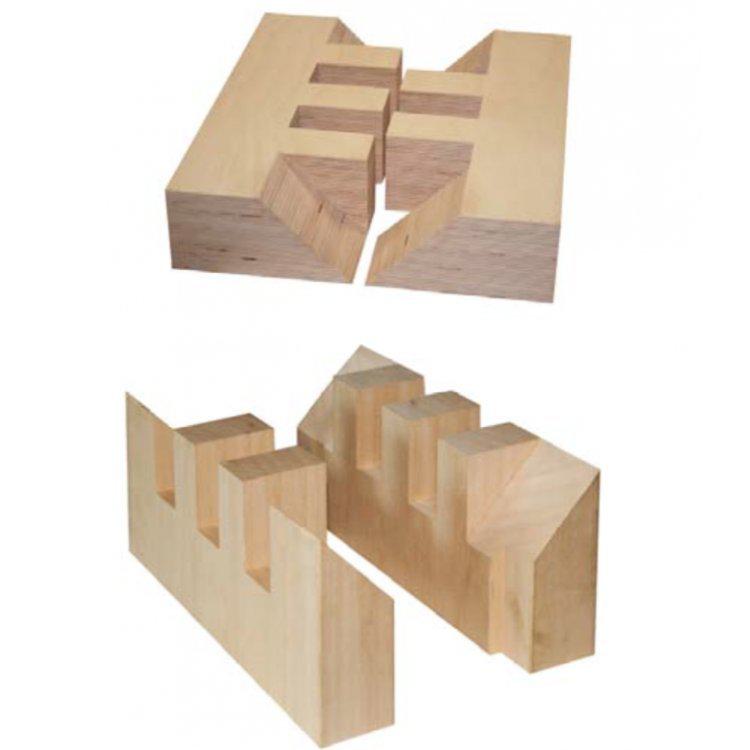

Omec F9 Combined Milling Machine for door frames - The F9 milling machine by Omec was designed to manufacture door frames with one, two or three parallel joints and 45° mitre in one single working cycle with no tool changes, This type of process makes a more accurate, stable and consistent joint than traditional jointing systems using plugs, nails & screws. In addition, this is an extremely practical system for the subsequent assembly & site installation. The outside of the frame shows only an aesthetic mitre joint.

  • Length

    500mm - 2500mm

  • Width

    100mm - 290mm

  • Indents

    50mm

  • Case Thickness

    30mm - 50mm

  • Crosspiece Thickness

    30mm - 50mm

  • Machine Power

    10.5kw (12.5 hp)

  • Working Pressure

    0.7m/pascal

  • No of Spindles

    1

  • Spindle RPM

    5600rpm

  • Blades

    2

  • Size of Machine

    150 x 160 x 150cm

  • Weight of Machine

    750kg

  • Production of Capability

    25 frames per hour
