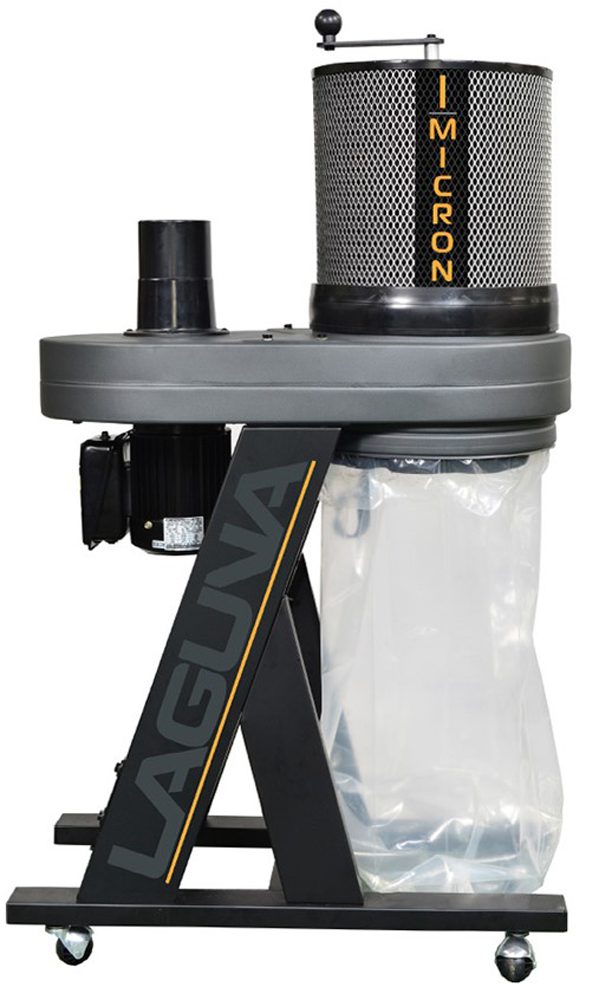

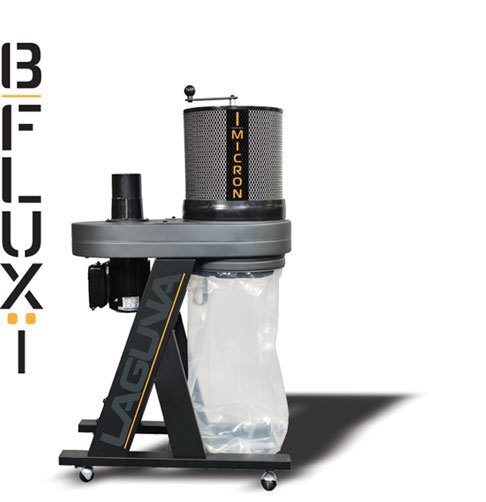

Laguna B Flux 1

Part No

BFLUX1

Motor HP

750w (1HP)

Power Supply

220 - 240v/50Hz/1 Phase

Airflow (Traditional method)

884m3/hor (52-CFM)

Airflow (Realistic method)

748m3/hour (440CFM)

RPM

2800

Max Static Pressure

123mm in water

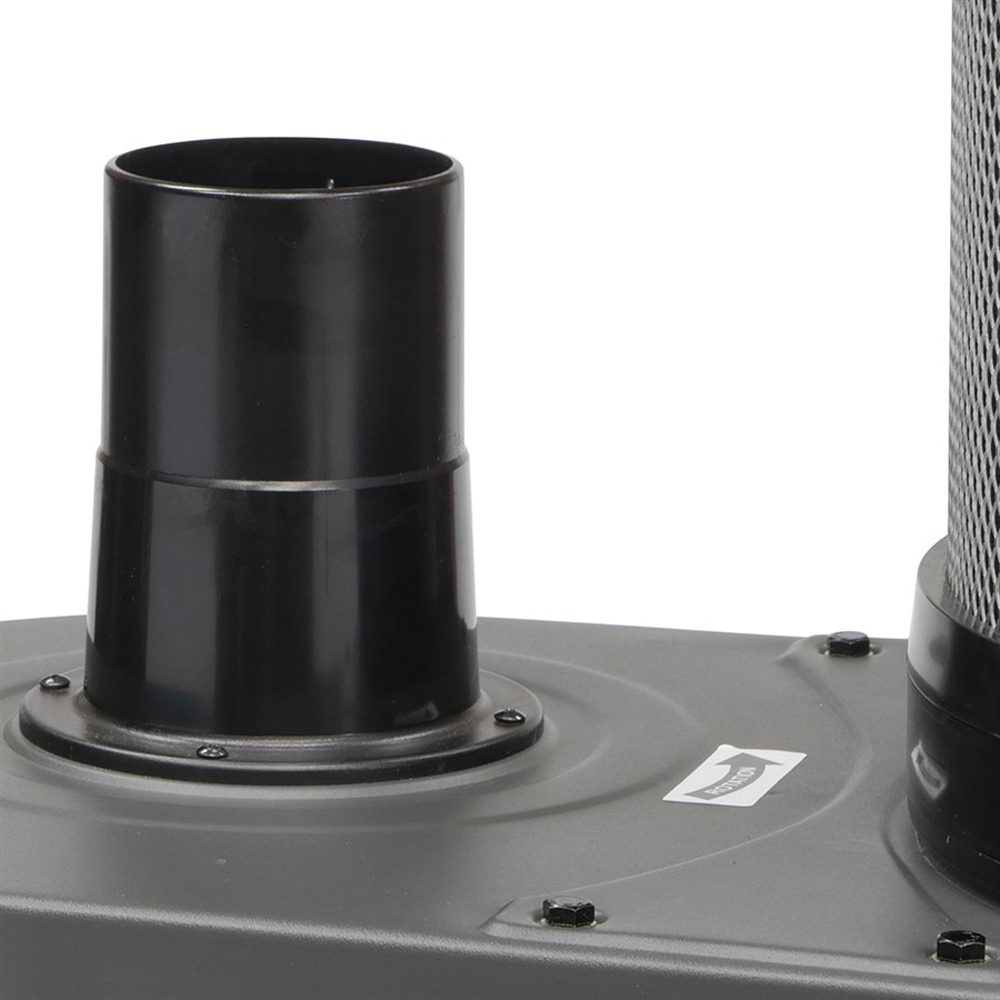

Inlet diameter

1000mm (4")

Impeller

9" Steel radial fin

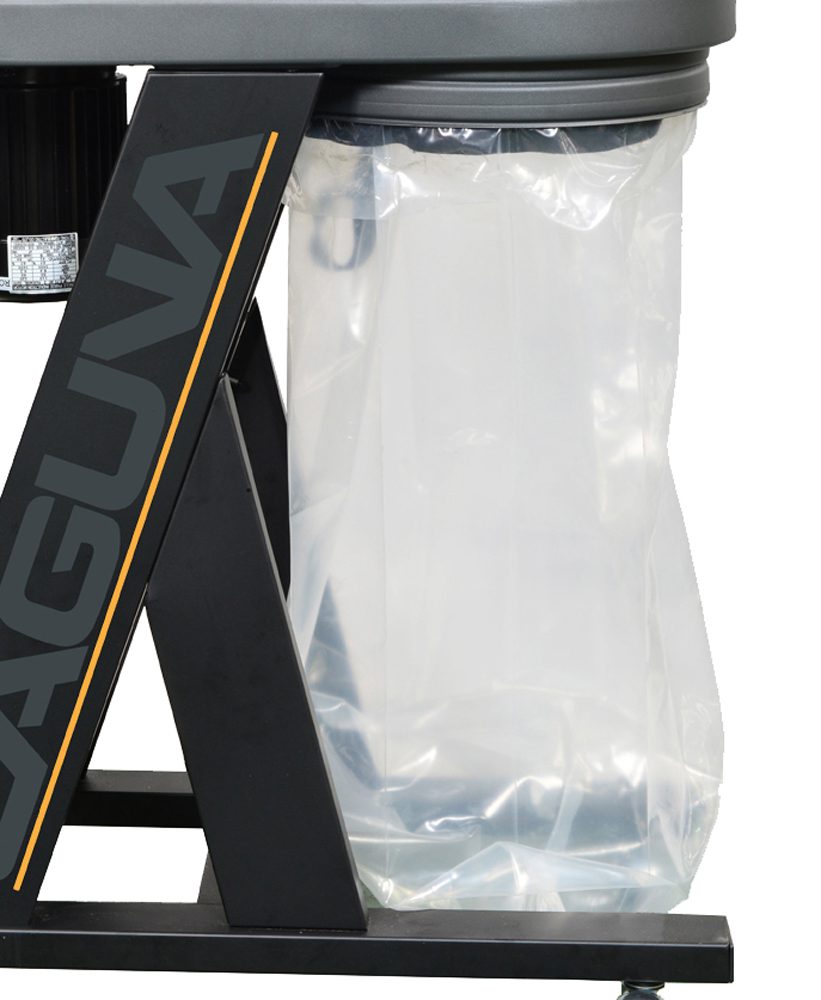

Drum collection bag layflat size

600 x 900mm (24" x 36")

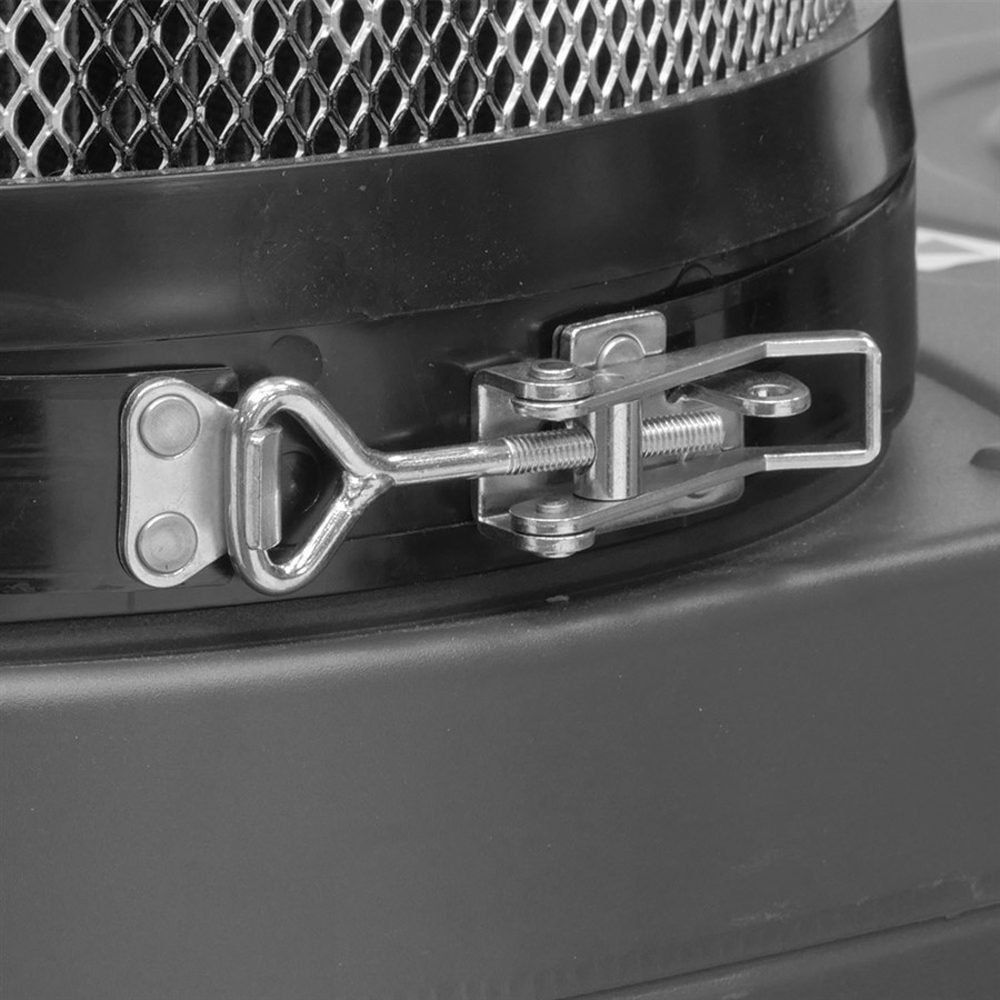

Cartridge Filter

360mm diameter x 300mm height

Filter surface area

1.6m2 (17.2ft2)

Filtration efficiency

99.7% at 1micron

Canister cleaning

Manual crank

Power cable with UK 3 pin plug

1.8m (6ft)

Sound Level

76 dB(A) @ 3m

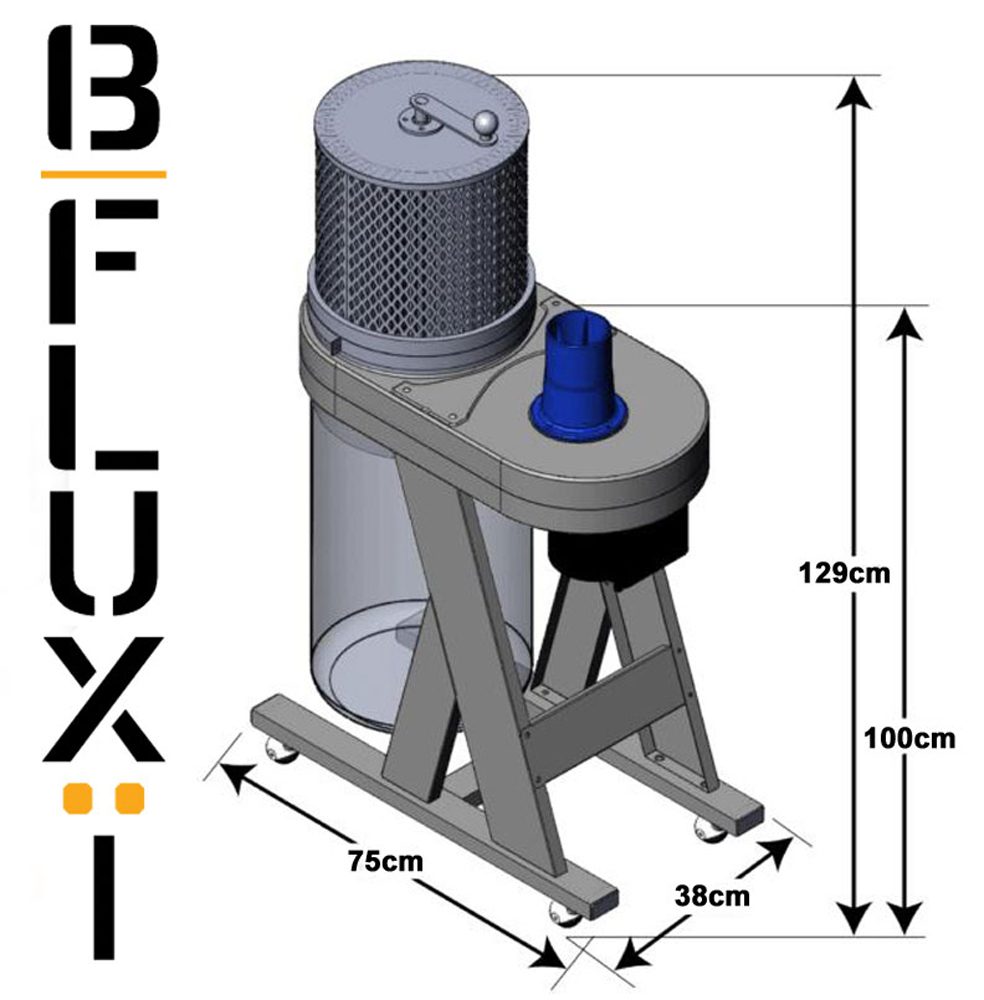

Assembled Dimensions (WxDxH)

737mm x 381mm x 1270mm

Shipping Dimensions

805mm x 500mm 635mm

Weight (Net/Ship)

32kg / 35kg

Manufacturers Warranty

1 Year

Assembly time

1 1/2 Hours
