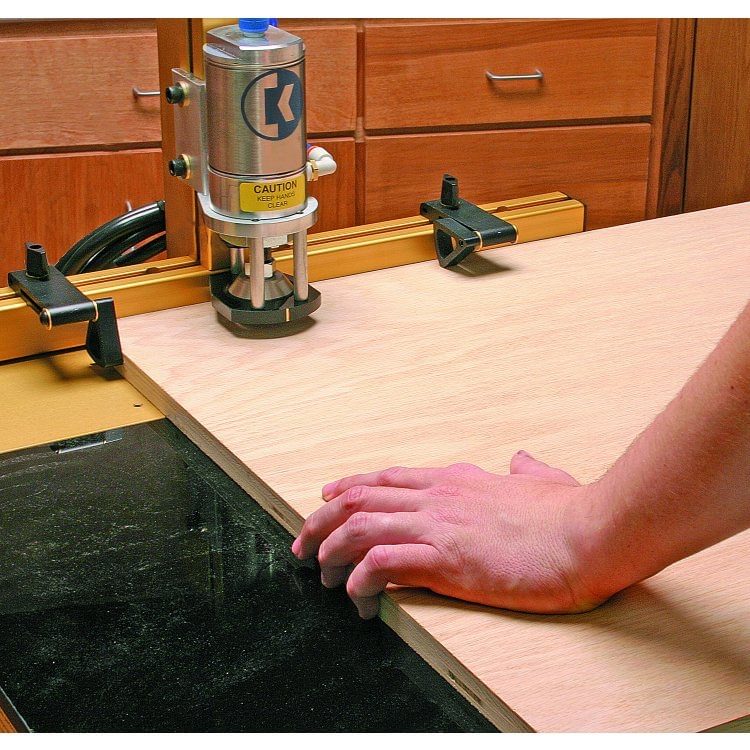

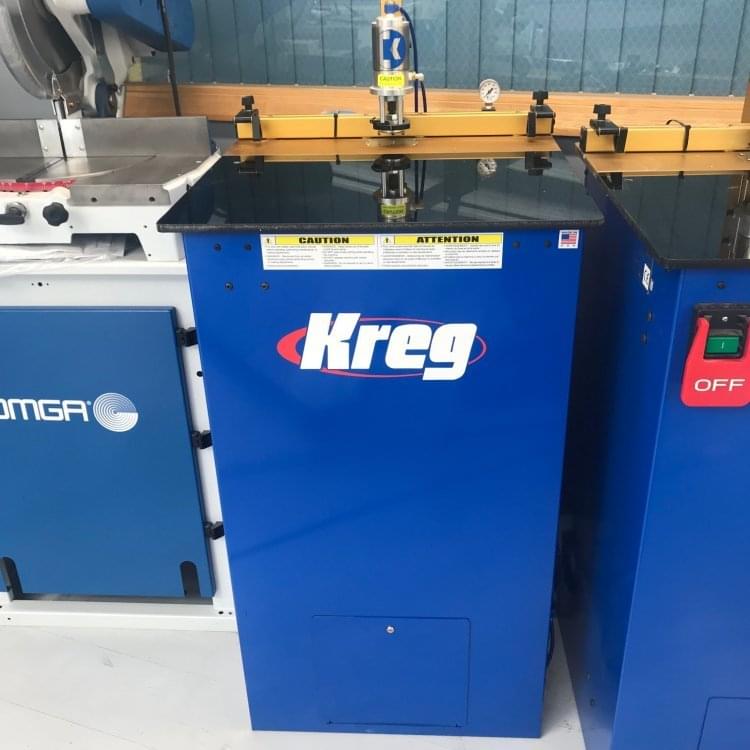

New Kreg DK1100 FP Pocket Hole Drill
£4,850.00
(£5,820.00 inc VAT)
Single Step Pocket Hole Drilling Machine for production use, floor standing on it’s own base with a foot pedal to operate the machine. An industrial air drill powers the stepped drill bit combined with a pneumatic clamp to hold the material. The machine has an adjustable back fence and flip over stops. This is a very popular machine ideal for carcass and face frame drilling.
Drill Bit
3/8 “ shank dia, 3 1/6” pilot x ½” Long Cobalt
CFM
8cfm @ 50% Daily Cycle (120 psi)
Cycle Time
1 sec
Material Clamping Capacity
4” (100mm)
Max Material Thickness for Drilling
1 ½” (37mm)
Min Material Thickness for Drilling
½” (12mm)
Weight
63kg
Dimensions
50” (1270mm) x 24” (600mm) x 24” (600mm)
